3.4.4.2 Counterclockwise taper. A counterclockwise taper is a resistance taper in which the resistance varies
approximately as shown on figure 3, increasing as the rotation angle increases in a counterclockwise direction as
viewed form the operating shaft, and measured between the right terminal and the rotating contact terminal as
indicated 3 and 2, respectively on figure 1

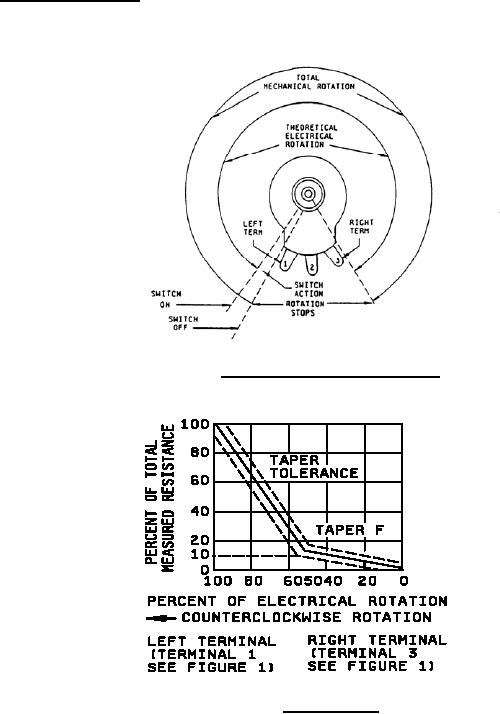

FIGURE 1. Definition of rotation (shaft end view).
FIGURE 2. Clockwise taper.
5
