MIL-PRF-914C
3.11.1 Solderability for leadless packages. The criteria for acceptable solderability during evaluation of the
terminations are:
a.
The total surface area of the dipped part of the termination is at least 95 percent covered by a continuous
new solder coating.
b.
That pinholes, voids, porosity, nonwetting, or dewetting are not concentrated in one area and do not exceed
5 percent of the total metallized termination area.
c.
That there shall be no solder bridging between any termination area and any other termination area not
connected to it by design. In the event that the solder dipping causes bridging, the test shall not be
considered a failure provided that a local application of heat (e.g., gas, soldering iron, or redipping) results in
solder pull back and no wetting of the dielectric area as indicated by microscope of 10X.
The area of the surface to be tested as specified in 4.8.6c. shall include the total metallized area of both the
castellations and bottom terminal pads. In case of a dispute, the percentage of coverage with pinholes or voids shall
be determined by actual measurement of these areas, as compared to the total area.
3.11.2 Solderability for leaded packages. When networks are tested as specified in 4.8.6, they shall meet the
criteria as specified on figure 2.
a.
The total surface area (except for the edge) of the dipped part of the termination is at least 95 percent
covered by a continuous new solder coating.
b.
That pinholes, voids, porosity, nonwetting, or dewetting are not concentrated in one area and do not exceed
5 percent of the total wetting inspection area.

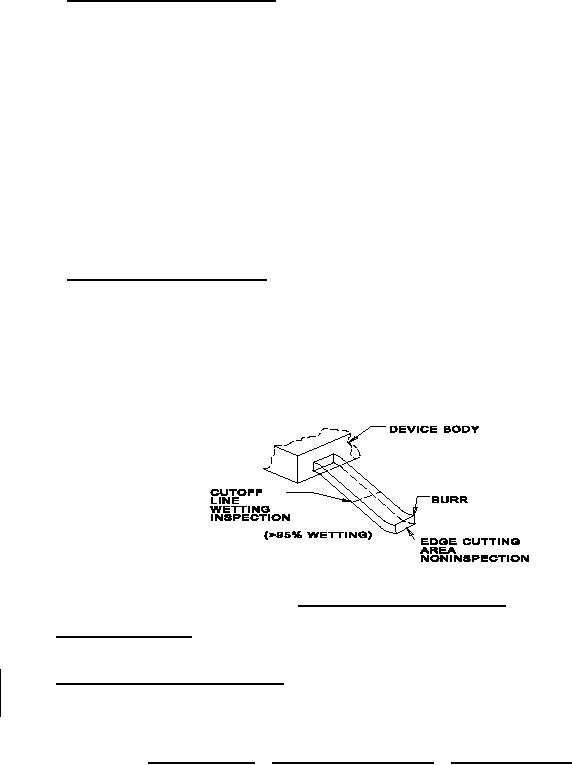

FIGURE 2. Solderability for gullwing packages.
3.12 Resistance to solvents. When networks are tested as specified in 4.8.7, there shall be no evidence of
mechanical damage and the marking shall remain legible.
3.13 Resistance-temperature characteristic. When networks are tested as specified in 4.8.8, the resistance-
temperature characteristic, at each of the temperatures specified in 4.8.8c referred to room ambient temperature,
shall not exceed the value specified:
Resistance temperature
Element tracking
Characteristic
characteristic
M
±300 ppm
K
±100 ppm
H
±50 ppm
C and V
±50 ppm
±5 ppm
±5 ppm
R
±25 ppm
10
