MIL-PRF-55182/9G

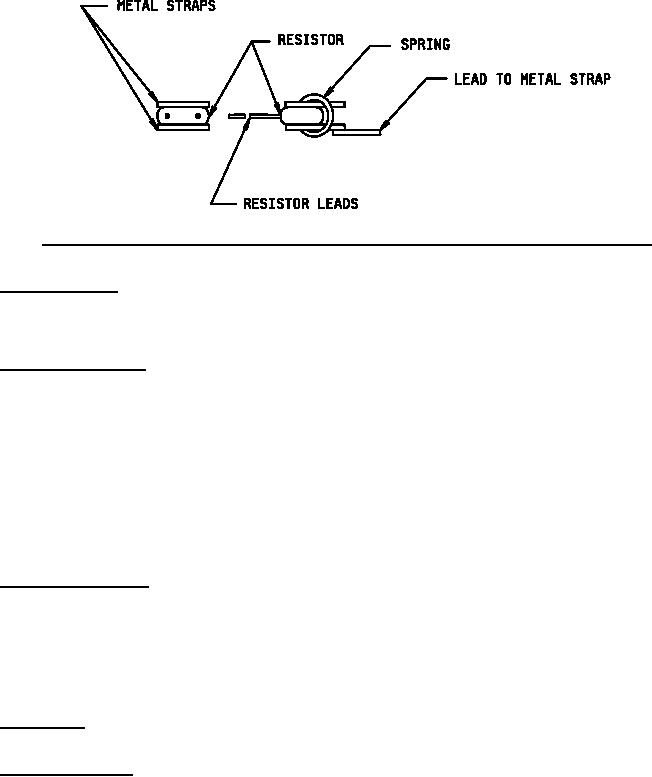

FIGURE 2. Metal strap assembly for dielectric withstanding voltage, moisture resistance, and insulation resistance.
4.4 Moisture resistance. In accordance with MIL-PRF-55182, except the resistor body shall be held between metal
straps during polarization (see figure 2).
5. PACKAGING
5.1 Packaging requirements. For acquisition purposes, the packaging requirements shall be as specified in the
contract or order. When actual packaging of material is to be performed by DoD personnel, these personnel need to
contact the responsible packaging activity to ascertain requisite packaging requirements. Packaging requirements
are maintained by the Inventory Control Point's packaging activity within the Military Department or Defense Agency,
or within the Military Department's System Command. Packaging data retrieval is available from the managing
Military Department's or Defense Agency's automated packaging files, CD-ROM products, or by contacting the
responsible packaging activity.
6. NOTES
(This section contains information of a general or explanatory nature that may be helpful, but is not mandatory.)
6.1 The notes specified in MIL-PRF-55182 are applicable to this specification.
6.2 Acquisition requirements. Acquisition documents must specify the following:
a. Title, number, and date of the specification.
b. Issue of DoDISS to be cited in the solicitation, and if required, the specific issue of individual documents
referenced (see 2.2.1).
*
c. Packaging requirements (see 5.1). (i.e. Electrostatic discharge (ESD) sensitive packaging).
6.3 RNN resistors. Type RNN resistors are not available below 500 ohms value due to the temperature coefficient
of nickle leads being of significant value when measurements of resistor TC of 5 ppm are made.
6.4 Power rating at +70°C. The power rating at +70°C for 2,000 hours of life test has been established at 0.6 watt,
not to exceed maximum working voltage. It should be noted that the failure rate level is established at a single
condition of +125°C, 0.3 watt, and 10,000-hour life test duration.
