, nonestablished reliability, established reliability, and space level, fixed, film, resistors. Designers are CAUTIONED on using these resistors in high power pulse applications \(see 6.9\).

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9

MIL-PRF-55182/9G

Configuration A

Inches

.002

0.05

.120

3.05

.003

0.08

.125

3.17

.004

0.10

.150

3.81

.010

0.25

.200

5.08

.015

0.38

.310

7.87

.020

0.51

.320

8.13

.025

0.63

.336

8.53

.050

1.27

.500

12.70

.075

1.90

.875

22.23

.110

2.79

1.375

34.92

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for general

information only

3. Resistance measurement point

4. The lead measurements shall be made

at the point of emergence for the body.

5. Style of standoffs optional

Configuration B

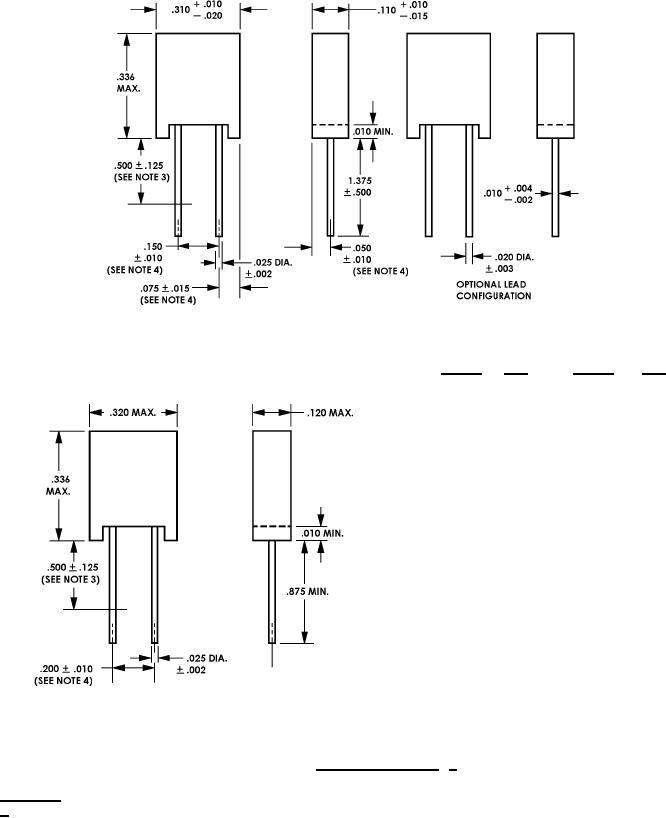

FIGURE 1. Style RN*90 resistor. 1/

________

1/ Third letter is variable, dependent upon lead material or capability.
