MIL-PRF-914-5 Resistor Network, Fixed, Film, Surface Mount, 16-Pin, Leadless Chip Carrier, Nonestablished Reliability And Established Reliability, Style Rns050This specification covers the associated requirements for RNS050 resistor networks. Resistors covered by this specification are considered a monolithic design or wire bond and die construction. The established reliability \(ER\) and nonestablished reliability \(non-ER\) styles are available in all characteristics and resistance tolerances. Designers are CAUTIONED on using these resistors in pulse applications \(see 6.6\).

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7

MIL-PRF-914/5B

SCHEMATIC A

SCHEMATIC B

SCHEMATIC C

SCHEMATIC D

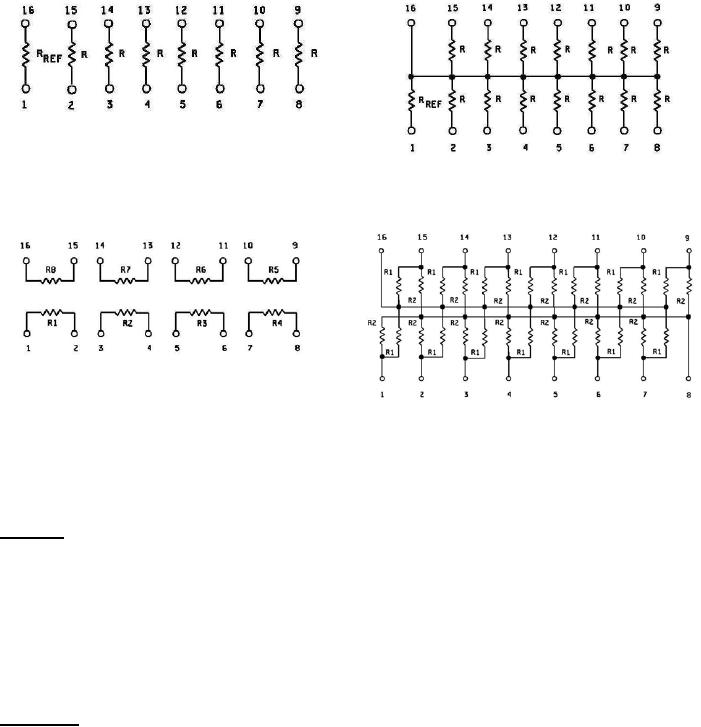

Figure 2. Schematic

5. PACKAGING.

5.1 Packaging. For acquisition purposes, the packaging requirements shall be as specified in the contract or order

(see 6.2). When packaging of materiel is to be performed by DoD or in-house contractor personnel, these personnel

need to contact the responsible packaging activity to ascertain packaging requirements. Packaging requirements are

maintained by the Inventory Control Point's packaging activity within the Military Service or Defense Agency, or within

the military services system commands. Packaging data retrieval is available from the managing Military

Department's or Defense Agency's automated packaging files, CD-ROM products, or by contacting the responsible

packaging activity.

6. NOTES

(This section contains information of a general nature that may be helpful, but is not mandatory.

6.1 Intended use. Resistor networks are used in surface mount applications where space is a major concern.
