MIL-PRF-914-3 Resistor Network, Fixed, Film, Surface Mount, 16-Pin, Leadless Chip Carrier, Nonestablished Reliability And Established Reliability, Style Rns030This specification covers the associated requirements for RNS030 resistor networks. Resistors covered by this specification are considered a monolithic design or wire bond and die construction. The established reliability \(ER\) and nonestablished reliability \(non-ER\) styles are available in all characteristics, and resistance tolerances. Designers are CAUTIONED on using these resistors in pulse applications \(see 6.6\).

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9


MIL-PRF-914/3B
Configuration A
Inches
mm
Inches
mm
Ltr
Ltr
Min
Max
Min
Max
Min
Max
Min
Max
A
.045  .055
1.14
1.40
H
.295  .305
7.49  7.75
B
.022  .028
.056
0.71
J
.015
---
0.38
---
C
.000  .010
0.00
0.25
K
.015  .025
0.38  0.64
D
.015  .025
0.38
0.64
L
.045  .055
1.14  1.40
E 1/
.035  .045
0.89
1.14
M
.080  .090
2.03  2.29
F
.245  .255
6.22
6.48
N
.025  .035
0.63  0.89
G
---
.050
---
1.27
P
.295  .305
7.49  7.75
1/ Typical

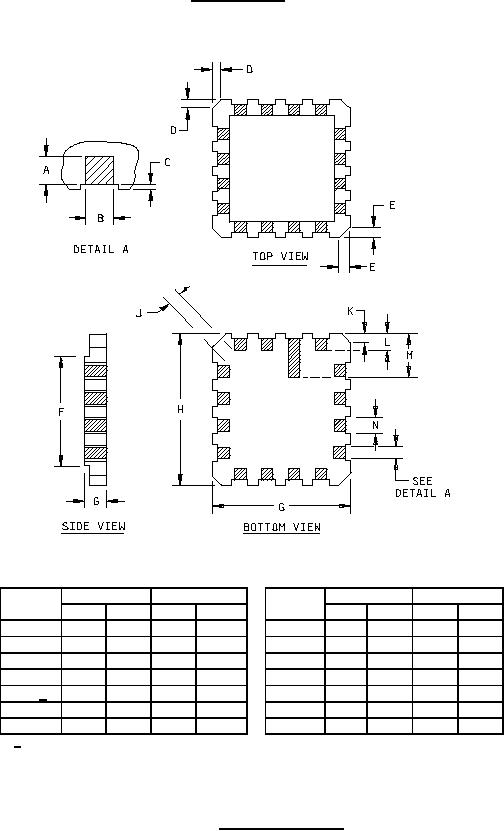

FIGURE 1. Leadless chip carrier
