MIL-PRF-83401-19 Resistor Network, Fixed, Film Style Rz190, 8-Pin SipThis specification covers the associated requirements for style RZ190, 8-pin single-in-line package \(SIP\) resistor network. This style is available in characteristic K and resistance tolerances of G. This specification has two product levels, a high reliability, 100 percent burn-in screened "M" part number and a nonburn-in screened part number "C". Designers are CAUTIONED on using these resistors in high power pulses applications \(see 6.4\).

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9


.
MIL-PRF-83401/19D

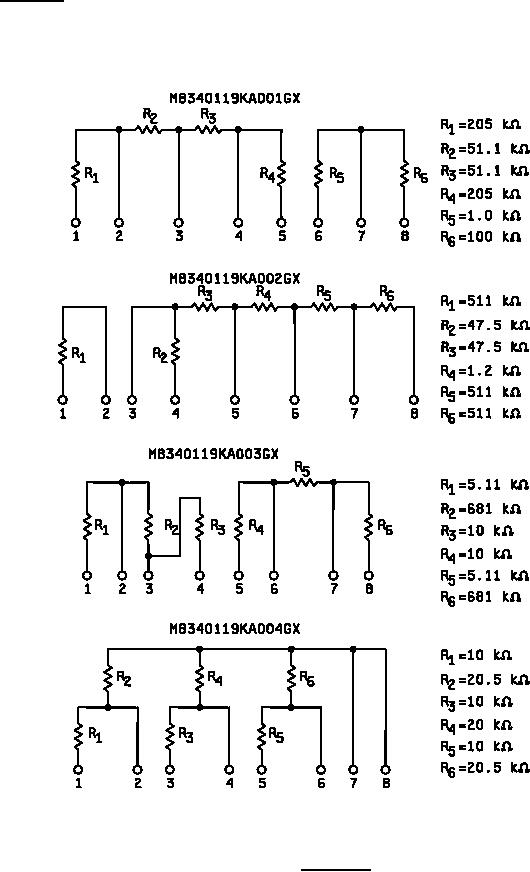

1.2.1 Schematic. The schematics of the resistor networks are identified by the coded number in accordance with
the drawings on figure 1.
FIGURE 1. Schematics.
2
