MIL-PRF-39015/2J
mm
INCHES
0.05
.002
0.13
.005
0.15
.006
0.18
.007
0.25
.010
0.38
.015
0.51
.020
0.64
.025
0.71
.028
0.89
.035
1.14
.045
1.27
.050
1.52
.060
1.60
.063
1.85
.073
1.98
.078
2.36
.093
2.54
.100
4.37
.172
4.75
.187
5.21
.205
5.97
.235
6.35
.250
6.60
.260
12.70
.500
13.08
.515
13.21
.520
NOTES:
1. Dimensions are in inches.
2. Unless otherwise specified, tolerance is ±.005 (.13 mm).
3. Metric equivalents (to the nearest .01 mm) are given for general information only.
4. The entire slot of the actuating screw must be above the surface of the unit.
5. For types P, W, and X, normal mounting means is by use of pins only.
6. The three leads shall be of the stranded wire, AWG size 28 to 30, having a minimum length of 6
(152.4 mm); they shall be insulated with polytetrafluoroethylene, stripped .250 ±.062 (6.35 ±1.57
mm) from the end, and color coded.
7. Dimensions not shown are the same as for type P.
8. The picturization of the styles above are given as representative of the envelope of the item.
Slight deviations from the outline shown, which are contained within the envelope, and do not
alter the functional aspects of the device are acceptable.
9. Mounting holes and/or slots are optional for terminal styles P, W, and X.

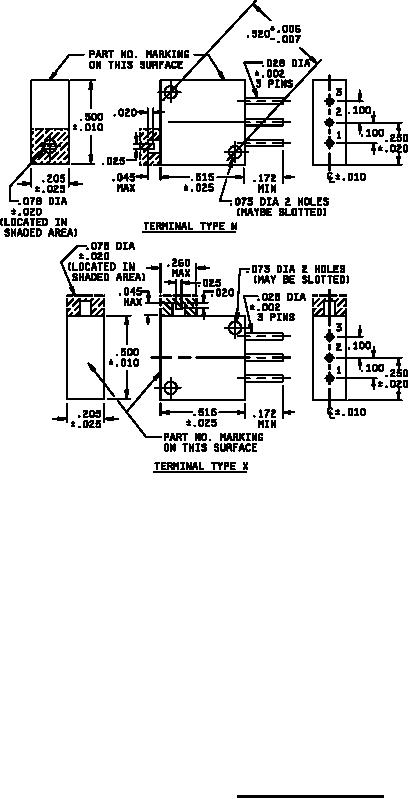

FIGURE 1. Style RTR22 resistors - Continued.
5
