MIL-PRF-39015-2 Resistors, Variable, Wire-Wound \(Lead-Screw Actuated\), Nonestablished Reliability And Established Reliability Style Rtr22This specification covers the associated requirements for style RTR22, lead-screw actuated, wire-wound, variable resistors. The resistors are available in a ??5 percent resistance tolerance and terminal types L \(inactive for new design\), P, W, and X.

Pages 1 - 2 - 3 - 4 - 5 - 6


.
MIL-PRF-39015/2J
6.1 Notes. In addition to the notes specified herein, the notes specified in MIL-PRF-39015 are
applicable to this specification.

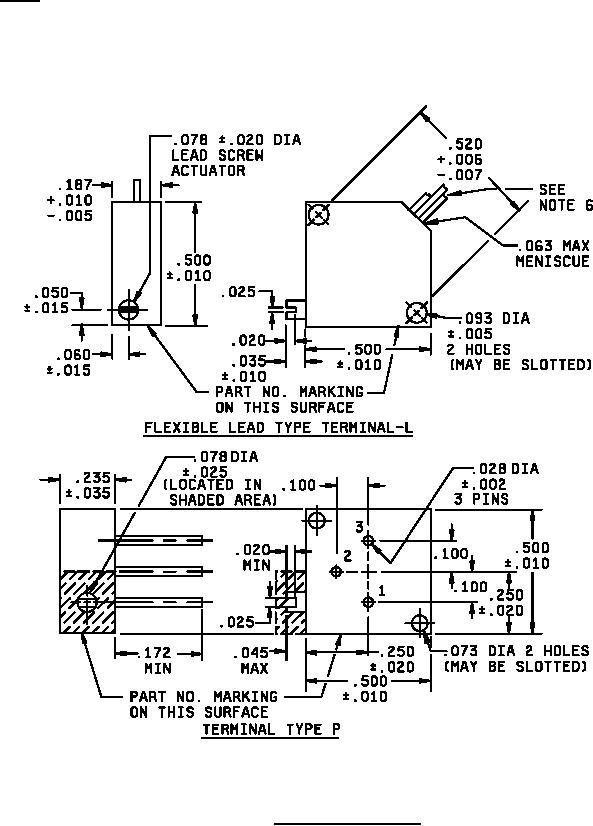

FIGURE 1. Style RTR22 resistors.
4
