MIL-PRF-22097-4 Resistor, Variable, Nonwirewound, Adjustment Type, Lead Screw Actuated, Style Rj24This specification covers the requirements for style RJ24, adjustment type, lead-screw actuated, nonwirewound, variable resistors. This style is available in characteristics C \(used characteristic F as a replacement for characteristic C\) and F.

Pages 1 - 2 - 3 - 4 - 5

MIL-PRF-22097/4F

DEPARTMENT OF DEFENSE SPECIFICATION

Resistor, Variable, Nonwirewound (Adjustment Type), General Specification For.

(Copies of these documents are available online at https://assist.daps.dla.mil/quicksearch/ or from the

Standardization Document Order Desk, 700 Robbins Avenue, Building 4D, Philadelphia, PA 19111-5094).

2.3 Order of precedence. Unless otherwise noted herein or in the contract, in the event of a conflict between the

text of this document and the references cited herein (except for related specification sheets), the text of this

document takes precedence unless otherwise noted. Nothing in this document, however, supersedes applicable

laws and regulations unless a specific exemption has been obtained.

3. REQUIREMENTS

3.1 General. The requirements for acquiring the product described herein shall consist of this document and

3.2 Interface and physical dimensions. Resistors shall meet the interface and physical dimensions specified on

figure 1, as applicable.

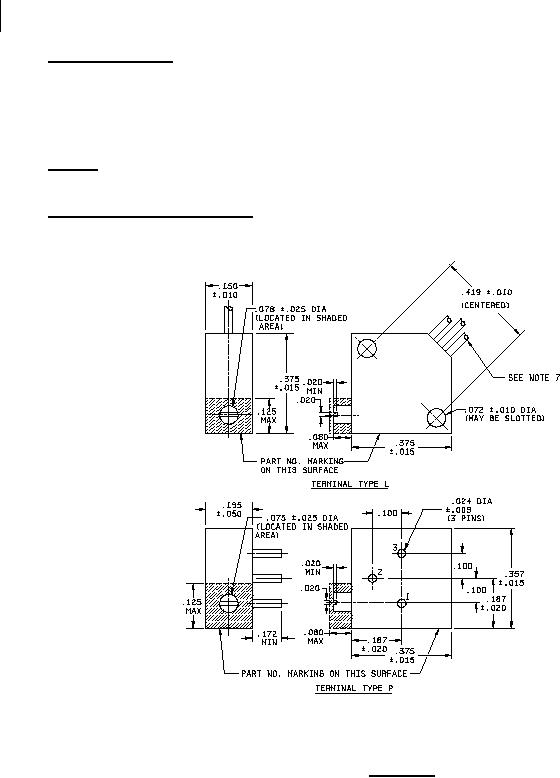

FIGURE 1. Style RJ24.
