MIL-PRF-22/9D
Inches
mm
Inches
mm
Inches
mm
Inches
mm
0.002
0.05
0.047
1.19
0.219
5.56
2.030
51.56
0.005
0.13
0.063
1.60
0.250
6.35
2.440
61.98
0.015
0.38
0.094
2.39
0.375
9.53
3.000
76.20
0.031
0.79
0.188
4.78
0.500
12.70
4.060
103.12
NOTES:
1. Dimensions are in inches.
2. Tolerance is ±.015 unless other wise specified.
3. Metric equivalents are given for general information.

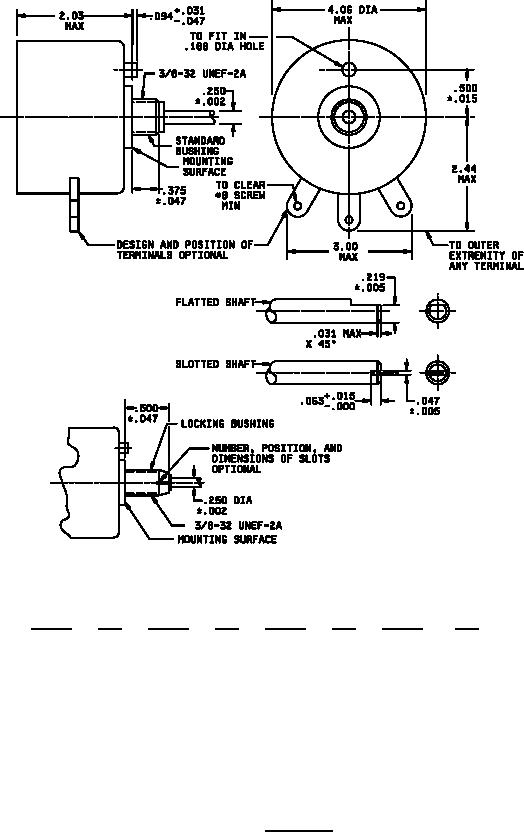

FIGURE 1. Style RP30
3
