MIL-PRF-22-7 Resistor, Variable, Wirewound, Power Type, Unenclosed, Style Rp20This specification covers the requirements for style RP20, variable, wirewound, power type, unenclosed resistors.

Pages 1 - 2 - 3 - 4 - 5 - 6

MIL-PRF-22/7D

Inches

.001

0.03

.015

0.38

.063

1.60

.216

5.49

.470

11.94

1.820

46.23

.002

0.05

.031

0.79

.094

2.39

.250

6.35

.500

12.70

2.560

65.02

.005

0.13

.047

1.19

.188

4.78

.375

9.53

1.780

45.21

2.810

71.37

NOTES:

1. Dimensions are in inches.

2. Tolerance is �.015 unless other wise specified.

3. Metric equivalents are given for general information.

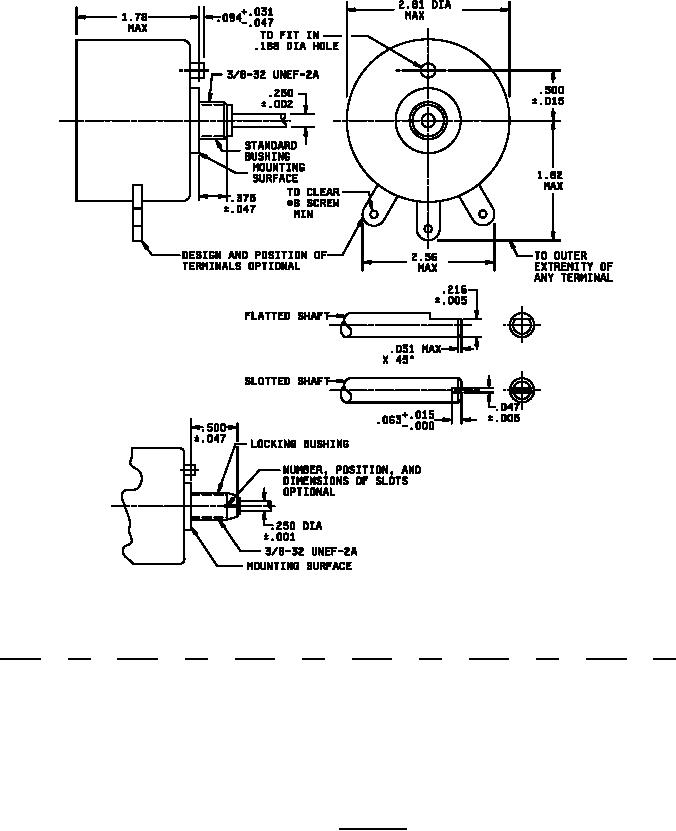

FIGURE 1. Style RP20
