MIL-DTL-15109D
NOTES:
1. PIECE 2 IS TO SAME AS PIECE I, EXCEPT OMIT (6) 9/16" HOLES.
2. LOCATE AND DRILL 11/32" HOLES IN PCS 4 AND 5 TO SUIT
RHEOSTAT.
3. UTILIZE WELDED CONSTRUCTION 3/16" FILLET WELD.
4. MOUNTING IS TO BE SECURED DIRECTLY TO FIGURE 4A TEST
PANEL OF MIL-S-901.
5. RHEOSTAT MOUNTING BOLTS AND ANY ASSOCIATED BUSHINGS
ARE TO BE SUPPLIED WITH THE RHEOSTAT.
LIST OF MATERIAL
QUANTITIES ARE FOR ONE MOUNTING
PIECE
NAME OF PIECE
REQ
MATERIAL
SPECS
FRAME
1
FRAME H/2"X1-1/2"X3/16"L
1
STEEL
2
FRAME 1-1/2"X1-1/2"X3/16"L
1
STEEL
3
ANGLE 1-1/2"X1-1/2"X19-3/8"
4
STEEL
4
ANGLE 1-1/2"X1-1/2"X19-3/8"
4
STEEL
5
ANGLE 1-1/2"X1-1/2"X19-3/8"
4
STEEL
6
GUSSET PLATE 4"X4"X3/4"T
20
STEEL
7
BOLT 5/16"-18X1"HX.HD.
16
STEEL
8
NUT 5/16"-18 HX.HD.
16
STEEL
9
WASHER 3/8"-LD.X O.D.
32
STEEL

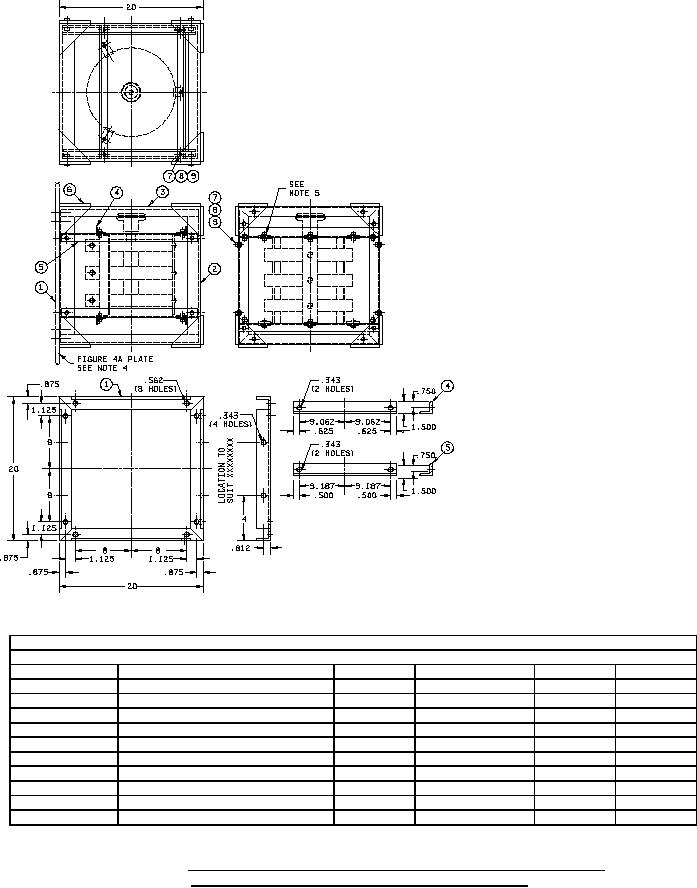

FIGURE 1. Standard mounting for shock testing double end supported multi-deck
plate type rheostats, type A test - lightweight equipment.
