MIL-R-19365 Resistor, Adjustable, Wirewound, PowerThis specification covers power, adjustable, wirewound, resistors for use in electrical, electronic, communication, and associated equipment. These resistors have a resistance range of 1 ohm to 15,000 ohms, inclusive, and a resistance tolerance of ┬▒5 percent. The power ratings cover a range of 11 watts to 210 watts, inclusive. These power ratings are applicable only when the maximum resistance is engaged in the circuit. When only a portion of the resistance element is engaged, the power rating is reduced in approximately the same proportion as the resistance.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25 - 26

MIL-R-19365E

Letter

Inches (mm) Inches (mm) Letter

Min Max

A	.016	(0.41)			F	.085	(2.16)
B			1.531	(38.89)	G	1.093	(27.76)	1.343	(34.11)
c	.062	(1.57)			H			1.312	(33.32)
D	.218	(5.54)	.328	(8.33)	J	9.938	(252.43)	10.062	(255.57)
E	.171	(4.34)	.328	(8.33)	K	.704	(17.88)	.906	(23.01)

characteristic Power rating

Resistance range in ohms

(watts) Minimum Maximum

v 210 1 15,000

NOTES:

1. All dimensions in inches.

2. Dimension K - applies for at least .5 inch (12.7 mm) from end of the tube; the remainder of the hole shall in no case be less than .25 inch (6.35 mm).

3. For information on supplementary insulation and standard bracket assembly (mounting hardware, see 6.6 and 6.7.1).

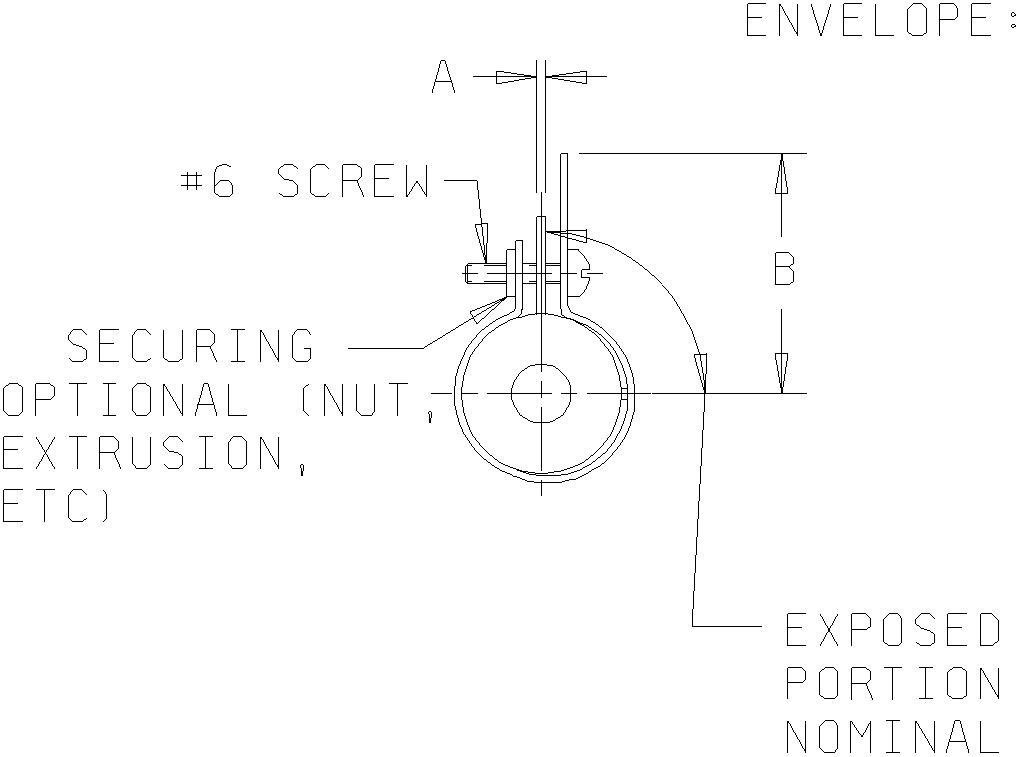

FIGURE 9. Style RX47.
