MIL-PRF-94G
3.4.2 Rotation. The total mechanical rotation and electrical rotation shall be defined on figure 2. The electrical
rotation of resistors with switches shall be equal to the rotation from stop at the end opposite the switch to the point
where members engaged to actuate the switch to the "off" position.

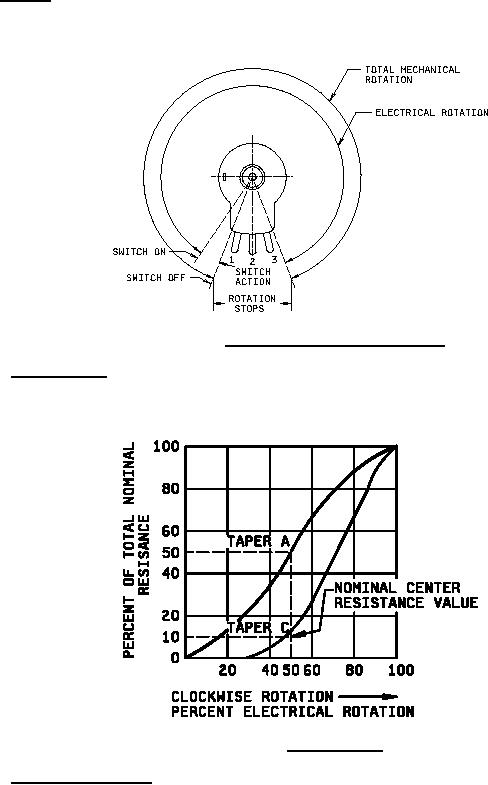

FIGURE 2. Definition or rotation (shaft end view).
3.4.2.1 Clockwise taper. A clockwise taper is a resistance taper in which the resistance varies approximately as
shown on figure 3, increasing as the rotation angle increases in a clockwise direction as viewed from the operating
shaft, and measured between the terminals indicated as 1 and 2 on figure 2.
FIGURE 3. Clockwise taper.
3.4.2.2 Counterclockwise taper. A counterclockwise taper is a resistance taper in which the resistance varies
approximately as shown in figure 4, increasing as the rotation angle increases in a counterclockwise direction as
viewed form the operating shaft, and measured between terminals indicated as 3 and 2 on figure 2.
