MIL-PRF-83401-3 Resistor Network, Fixed, Film, Style Rz030, 14 Pin Flat PackThis specification covers the associated requirements for style RZ030, 14 pin flat pack resistor networks. This style is available in all characteristics and resistance tolerances. This specification has two product levels, a high reliability, 100 percent burn-in screened "M" part number and a nonburn-in screened part number "C". Designers are CAUTIONED on using these resistors in high power pulses applications \(see 6.4\).

Pages 1 - 2 - 3 - 4 - 5 - 6

MIL-PRF-83401/3G

Inches

Inches mm

.004

0.10

.050

1.27

.005

0.13

.075

1.91

.006

0.15

.250

6.35

.010

0.25

.305

7.75

.019

0.48

.325

8.26

.035

0.89

.350

8.89

NOTES:

.045

1.14

.375

9.53

1. Dimensions are in inches.

2. Metric equivalents are given for general information only.

.825 20.96

3. Unless otherwise specified, tolerances are �.005 inch (0.13 mm).

4. The picturization of the styles above is given as representative of the envelope item. Slight deviations

from the outline shown, which are contained within the envelope and do not alter the functional aspects of

the device, are acceptable.

5. Terminal centerline to centerline measurements made at point of emergence of the lead from the body.

6. Measurement made at point of emergence of the lead of the body.

7. Pin 1 locator shall be a dot, notch, stripe, or numeral 1 adjacent to pin no. 1, in the shaded area.

8. This dimension includes all platings and coatings.

9. This dimension allows for off-center lid, meniscus, and glass overrun.

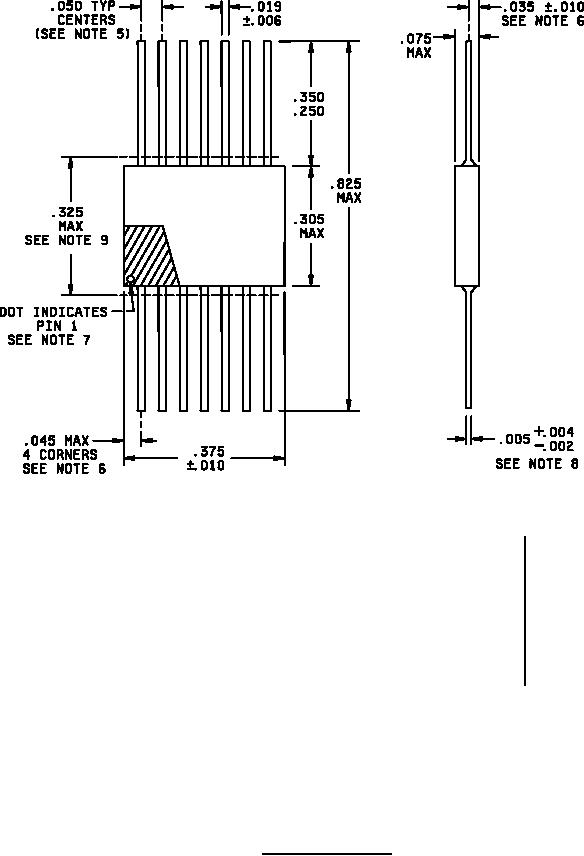

FIGURE 1. Style RZ030 resistors.
