MIL-PRF-83401-3 Resistor Network, Fixed, Film, Style Rz030, 14 Pin Flat PackThis specification covers the associated requirements for style RZ030, 14 pin flat pack resistor networks. This style is available in all characteristics and resistance tolerances. This specification has two product levels, a high reliability, 100 percent burn-in screened "M" part number and a nonburn-in screened part number "C". Designers are CAUTIONED on using these resistors in high power pulses applications \(see 6.4\).

Pages 1 - 2 - 3 - 4 - 5 - 6


MIL-PRF-83401/3G

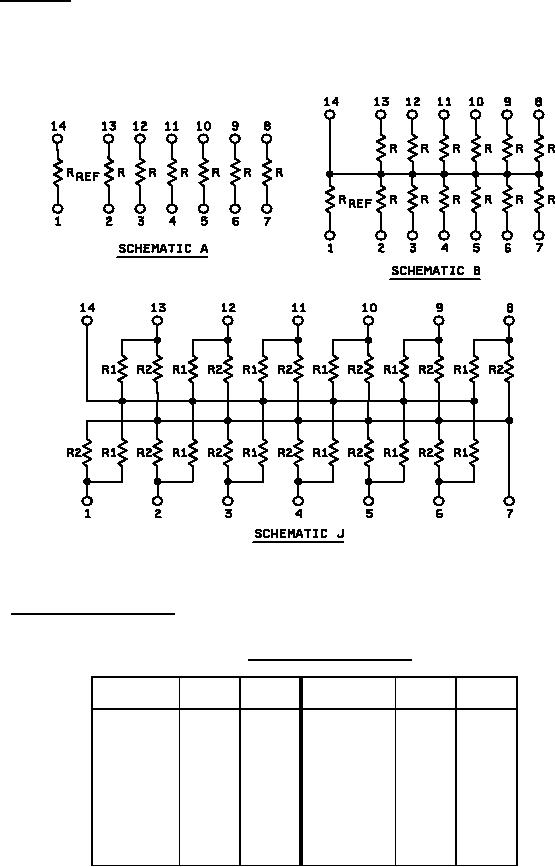

1.2.1 Schematics. The schematics of the resistor network are identified by a single letter in accordance with the
drawings below. The resistor element RREF is the reference element used in determining the ratio accuracy (when
applicable).
1.2.1.1 Standard resistance values. The standard resistance values and the resistance value designators for the J
schematic are as specified in table I.
TABLE I. Standard resistance values.
Resistance
R1
R2
Resistance
R1
R2
designator
(ohms)
(ohms)
designator
(ohms)
(ohms)
470
330
A010
130
82
A001
680
330
A011
200
120
A002
3.3k
1.5k
A012
210
130
A003
6.2k
3.0k
A013
260
160
A004
270
180
A014
240
180
A005
270
270
A015
390
180
A006
560
560
A016
270
220
A007
1.2k
560
A017
330
220
A008
2.7k
620
A018
390
330
A009
