MIL-PRF-55342-1 Resistors, Chip, Fixed, Film, Nonestablished Reliability, Established Reliability, Space Level, Style Rm0502This specification covers the requirements for style RM0502, fixed, film, chip, nonestablished reliability, established reliability, and space level resistors. This style is available in characteristic H, characteristic E, characteristic K, characteristic L, and characteristic M, resistance tolerances .1 percent, .25 percent, .5 percent, 1 percent, 2 percent, 5 percent, and 10 percent, and all termination materials. Designers are CAUTIONED on using these resistors in high power pulses applications \(see 6.5\).

Pages 1 - 2 - 3 - 4 - 5

MIL-PRF-55342/1J

Configuration B

Configuration A

Inches

0.005

0.13

0.030

0.76

0.006

0.15

0.033

0.84

0.010

0.25

0.050

1.27

0.015

0.38

0.055

1.40

0.025

0.64

Configuration

Dimension A

Dimension B

Dimension C

Dimension D

Dimension E

inch

.050 �.005

.025 �.005

.010/.030

.010 �.005

N/A

.055 �.006

.025 �.005

.010/.033

.010 �.005

.015 �.005

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for general information only.

3. Unless otherwise specified, tolerance is �.005 (0.13 mm).

4. The pictorial view of the styles above are given as representative of the envelope of the item. Slight

deviations from the outline shown, which are contained within the envelope, and do not alter the

functional aspects of the device are acceptable.

5. Configuration A covers termination materials D, T, and W.

6. Configuration B covers termination materials B, C, G, and U.

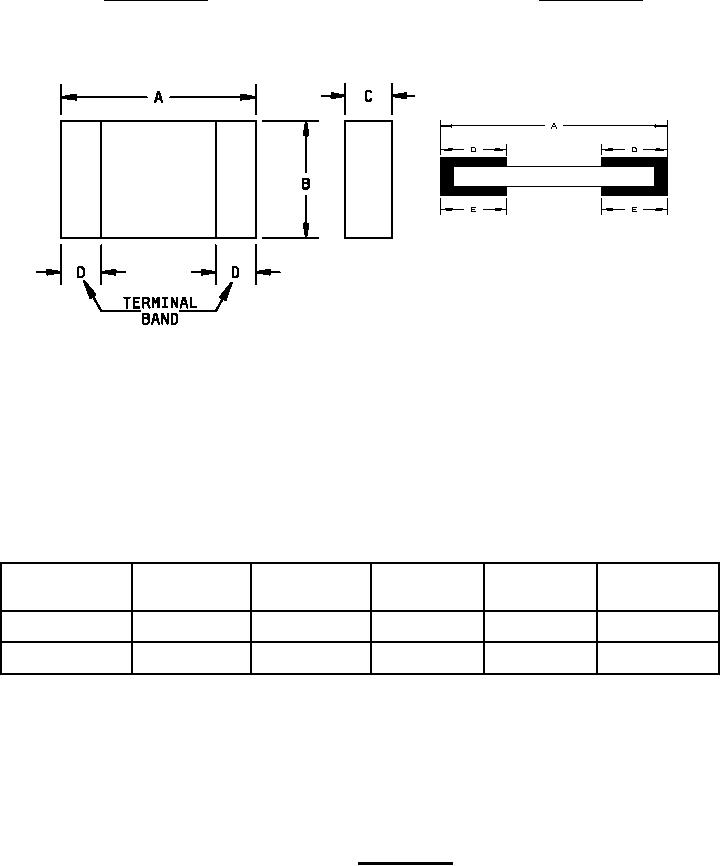

FIGURE 1. Style RM0502.
