, nonestablished reliability, established reliability, and space level, film, fixed resistors. Designers are CAUTIONED on using these resistors in high power pulse applications \(see 6.4\).

Pages 1 - 2 - 3 - 4 - 5

MIL-PRF-55182/5M

Inches

15.88

0.625

1.57

0.062

0.05

0.002

19.81

0.780

2.39

0.094

0.41

0.016

38.10

1.500

3.18

0.125

0.64

0.025

4.78

0.188

0.79

0.031

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for general information only.

3. The maximum length is "clean lead" to "clean lead".

4. The end of the body shall be that point at which the body diameter equals the nearest drill size larger than 250

percent of the nominal lead diameter.

5. Lead length for new design and tape and reel packaging shall be 1.00 inch +.625 inch, -.00 inch (25.4 mm

+15.80 mm, -0.00 mm).

6. Lead concentric tolerance is to be measured at the point of lead egress from the resistor body.

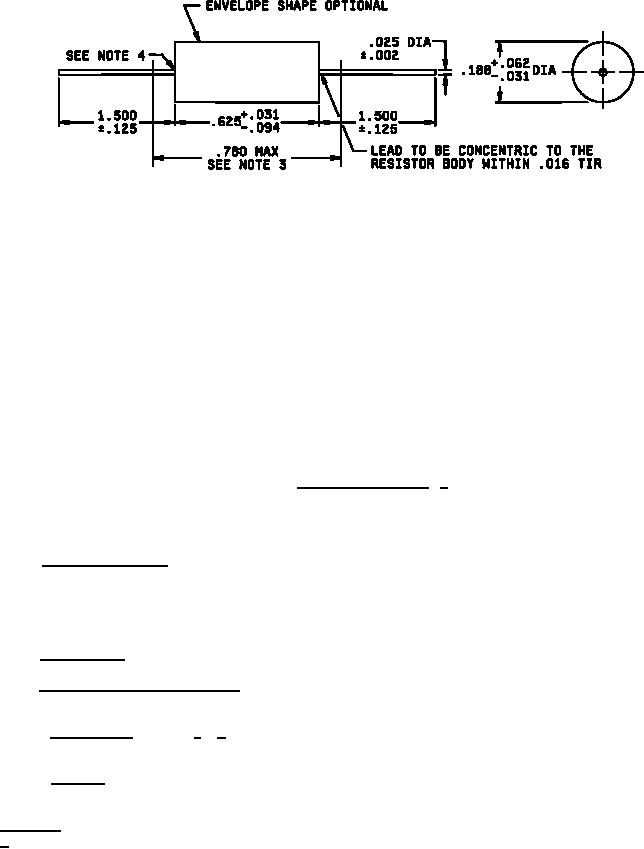

FIGURE 1. Style RN*65 resistors. 1/

(Unless otherwise indicated, copies of the above specifications, standards, and handbooks are available from the

Document Automation and Production Service, Building 4D, 700 Robbins Avenue, Philadelphia, PA 19111-5094.)

2.3 Order of precedence. In the event of a conflict between the text of this specification and the references cited

herein, the text of this document takes precedence. Nothing in this document, however, supersedes applicable laws and

regulations unless a specific exemption has been obtained.

3. REQUIREMENTS

3.1 Requirements. Requirements shall be in accordance with MIL-PRF-55182, and as specified herein.

3.2 Interface and physical dimensions. Resistors shall meet the interface and physical dimensions specified on figure

3.2.1 Characteristic. Style RN*65 1/ is available in characteristic C, characteristic E, characteristic H, characteristic J,

and characteristic K.

3.2.2 Terminal. Terminal RNC is inactive for new design when specified with characteristics C and E. Terminal

RNR is inactive for new design with when specified with characteristics H, J, and K.

________

1/ Third letter is variable, dependent upon lead material or capability.
