MIL-PRF-39015/3M
mm
INCHES
0.15
.006
0.25
.010
0.38
.015
.020
0.51
.024
0.61
.025
0.64
.030
0.76
.075
1.91
.080
2.03
.100
2.54
.125
3.18
.170
4.32
.197
4.75
.300
7.62
.375
9.53
.420
10.67
NOTES:
1. Dimensions are in inches.
2. Unless otherwise specified, tolerance is ±.005 (.13 mm).
3. Metric equivalents (to the nearest .01 mm) are given for general information.
4. The entire slot of the actuating screw must be above the surface of the unit.
5. For types P, W, and X, normal mounting means is by use of pins only.
6. The picturization of the styles above are given as representative of the envelope of the item.
Slight deviations from the outline shown, which are contained within the envelope, and do not
alter the functional aspects of the device are acceptable.
7. The three leads shall be of the stranded wire, AWG size 28 to size 30, having a minimum length
of 6 (152.4 mm); they shall be insulated with polytetrafluoroethylene, stripped .250 ±.062 (6.35
mm ±1.57 mm) from the end, and color coded.

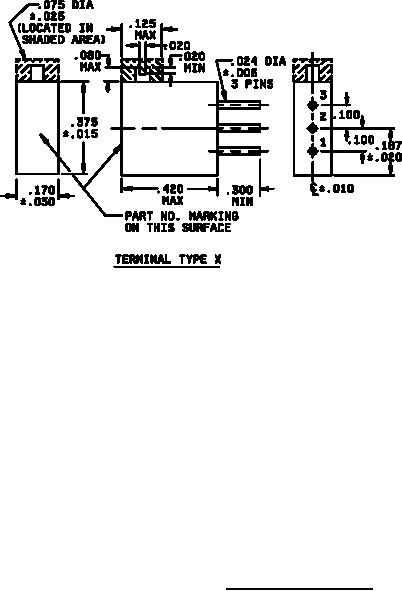

FIGURE 1. Style RTR24 resistors - Continued.
