MIL-PRF-23648/3E

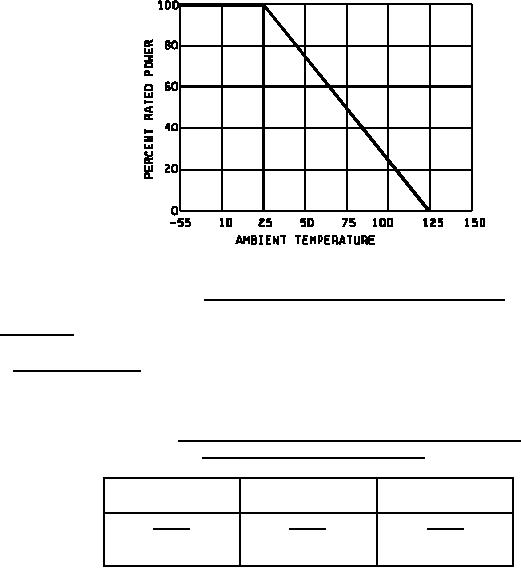

FIGURE 2. Derating curve for high ambient temperatures.

3.6 Resistance.

3.6.1 Resistance at 25 �C. Standard values shall be as specified in MIL-PRF-23648 except that the 5

percent decade values shall also be used for resistance tolerances F and G. Minimum and maximum

resistance values shall be in accordance with table I.

TABLE I. Minimum and maximum resistance values (at 25�C)

for each available resistance ratio.

Ratio

19.8 (A)

29.4 (B)

48.7 (C)

ohms

10 min

68 min

1k min

82 max

330 max

6.8k max
