MIL-PRF-23648-1 Resistor, Thermal \(Thermistor\), Insulated Negative Temperature Coefficient Style Rth06This specification covers the performance requirements for style RTH06 thermistors. This style is available in resistance ratios A, B, and C. The only terminal lead available is S type. Resistance tolerance versus temperature characteristics F, G, J, and K are applicable through the maximum temperature of 125 degrees C.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7

MIL-PRF-23648/1E

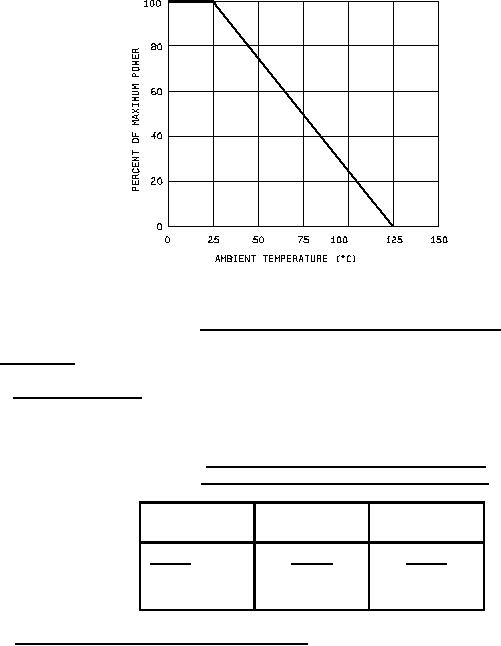

FIGURE 2. Derating curve for high ambient temperatures.

3.6 Resistance.

3.6.1 Resistance at 25�C. Standard values shall be as specified in MIL-PRF-23648 except that the 5

percent decade values shall also be used for resistance tolerance F and G. Minimum and maximum

resistance values shall be in accordance with table I.

TABLE I. Minimum and maximum resistance values

(at 25�C) for each available resistance ratio.

Ratio

Ratio 48.7 (C)

19.8 (A)

29.4 (B)

Ohms

68 min

680 min

7.5k min

560 max

4700 max

75k max

3.6.2 Resistance at temperatures other than 25�C. Factors for determining resistance at temperatures

other than 25�C are determined by multiplying the zero-power resistance at 25�C by the factors shown in

table II for the applicable resistance ratio.
