MIL-PRF-23648-1 Resistor, Thermal \(Thermistor\), Insulated Negative Temperature Coefficient Style Rth06This specification covers the performance requirements for style RTH06 thermistors. This style is available in resistance ratios A, B, and C. The only terminal lead available is S type. Resistance tolerance versus temperature characteristics F, G, J, and K are applicable through the maximum temperature of 125 degrees C.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7

MIL-PRF-23648/1E

2.3 Order of precedence. In the event of a conflict between the text of this document and the

references cited herein, the text of this document takes precedence. Nothing in this document, however,

supersedes applicable laws and regulations unless a specific exemption has been obtained.

3. REQUIREMENTS

3.1 Requirements. Requirements shall be in accordance with MIL-PRF-23648, and as specified herein.

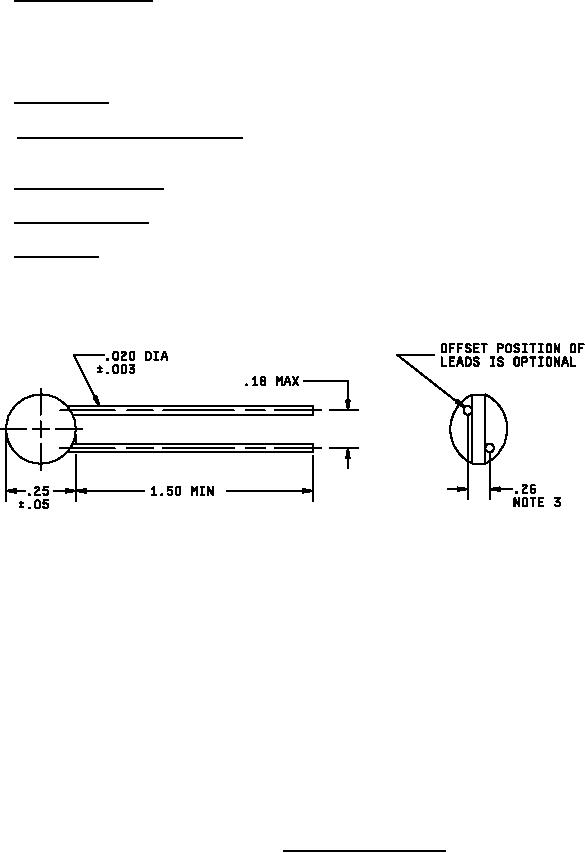

3.2 Interface and physical dimensions. The thermistors shall meet the interface and physical

dimensions as specified on figure 1 and herein.

3.3 Thermal time constant. The thermal time constant shall be 80 seconds maximum.

3.4 Dissipation constant. The dissipation constant shall be 5 milliwatts per degrees Celsius minimum.

3.5 Power rating. The thermistor shall be capable of dissipating a maximum power of 0.5 watts at 25�C.

Thermistors shall be derated in accordance with figure 2.

Inch

0.08

0.003

0.02

0.51

0.05

1.27

0.18

4.57

0.25

6.35

0.26

6.60

1.50

38.10

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for general information only.

3. This dimension is lead separation only (measured across solder joints) and will vary with

resistance.

FIGURE 1. Style RTH06 thermistors.
