MIL-PRF-22684-8 Resistors, Fixed, Film, Insulated, Style Rl42....TxThis specification covers the associated requirements for insulated, film, fixed resistors of 2-percent and 5-percent resistance tolerance. These resistors are capable of full-load operation at an ambient temperature of 70 degrees C and have a resistance-temperature characteristic of +200 parts per million per degree Celsius \(ppm/degrees C\). Designers are CAUTIONED on using these resistors in high power pulse applications \(see 6.3\)

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8

MIL-PRF-22684/8C

3.8 Dielectric withstanding voltage. Resistors shall be tested as specified in MIL-PRF-22684. The

magnitude of test voltage shall be as follows:

Atmospheric pressure - 1,000 volts rms.

Barometric pressure - 500 volts rms.

DIMENSIONS

INCHES

MILLIMETERS

MIN

MAX

MIN

MAX

.648

.728

16.46

18.49

1.375

1.625

34.92

41.28

.043

.047

1.09

1.19

.280

.336

7.11

8.53

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for general information only

3. The end of the body shall be that point at which the diameter equals the nearest

drill size larger than 250 percent of the nominal lead diameter. The leads shall

be solderable to within .125 inch (3.18 mm) of the resistor body.

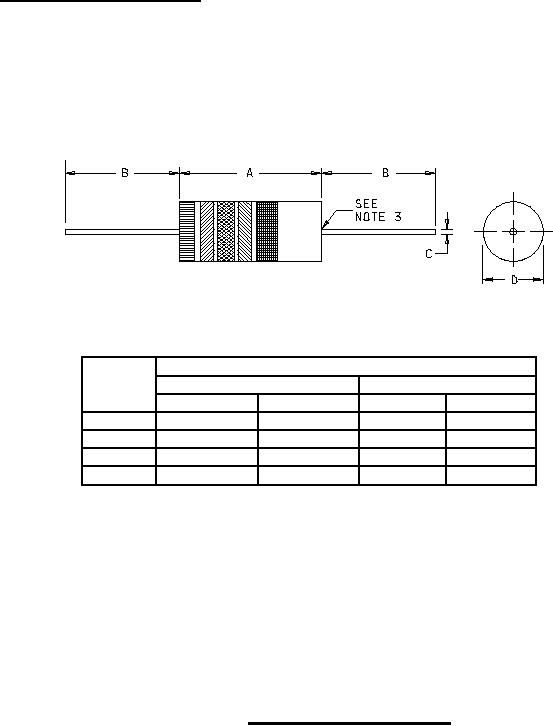

FIGURE 1. Configuration and dimensions.
