MIL-PRF-22-4 Resistor, Variable, Wirewound, Power Type, Enclosed, Style Rp11This specification covers the requirements for style RP11, variable, wire-wound, power type, enclosed resistors.

Pages 1 - 2 - 3 - 4 - 5 - 6

MIL-PRF-22/4D

Inches

.002

.05

.031

.79

.050

1.27

.250

6.35

1.750

44.45

.005

.13

.033

.84

.094

2.39

.375

9.53

1.880

47.75

.015

.38

.047

1.19

.219

5.56

.500

12.70

NOTES:

1. Dimensions are in inches.

2. Tolerance is �..015 unless other wise specified.

3. Metric equivalents are given for general information.

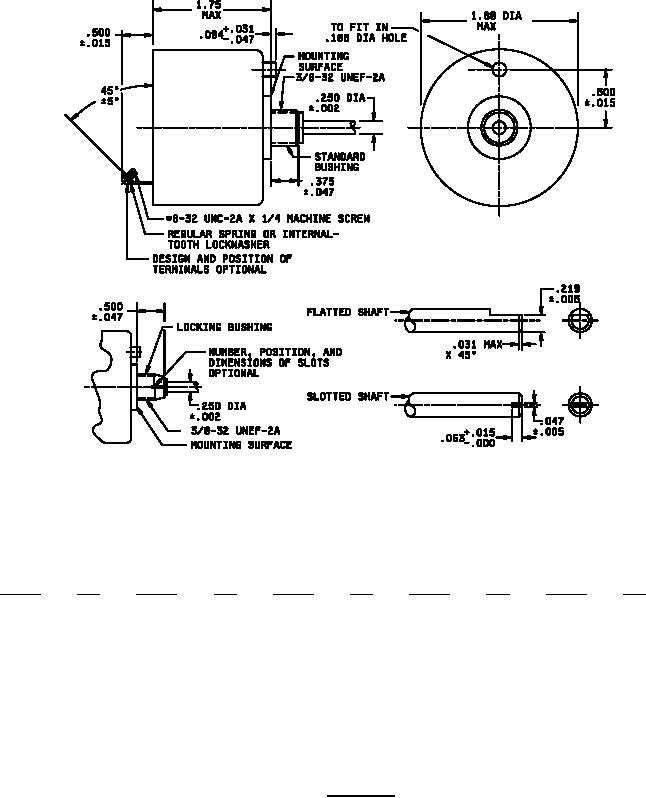

FIGURE 1. Style RP11
