MIL-PRF-22-3 Resistor, Variable, Wirewound, Power Type, Unenclosed, Style Rp10This specification covers the requirements for style RP10, variable, wirewound, power type, unenclosed resistors.

Pages 1 - 2 - 3 - 4 - 5 - 6

MIL-PRF-22/3D

Inches

.002

0.05

.031

0.79

.080

2.03

.219

5.56

.500

12.70

1.680

42.67

.005

0.13

.047

1.19

.094

2.39

.250

6.35

1.410

35.81

1.880

47.75

.015

0.38

.063

1.60

.125

3.18

.375

9.53

1.420

36.07

NOTES:

1. Dimensions are in inches.

2. Tolerance is �.015 unless other wise specified.

3. Metric equivalents are given for general information.

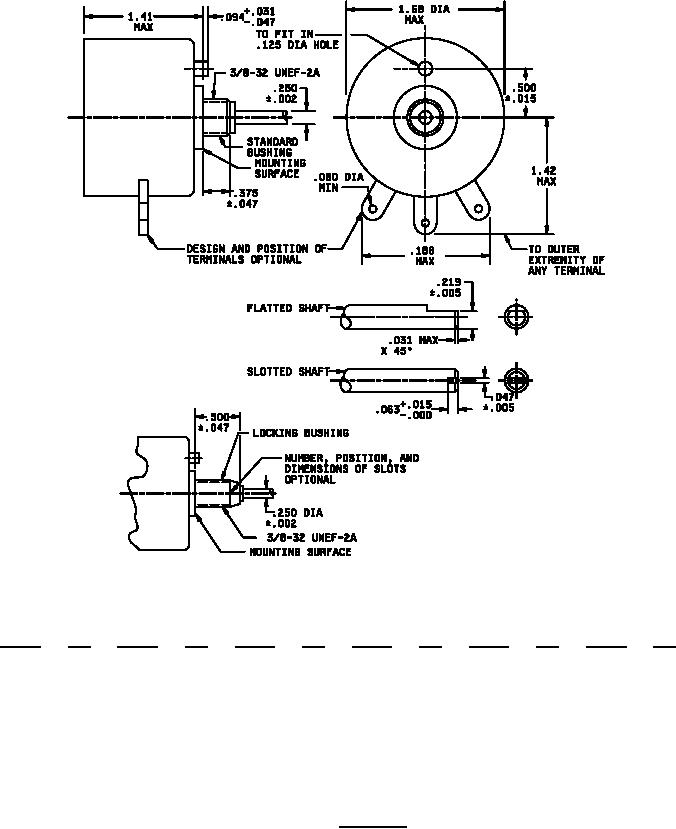

FIGURE 1. Style RP10
