MIL-PRF-22/14D
Inches
mm
Inches
mm
Inches
mm
Inches
mm
0.002
0.05
0.250
6.35
3.000
76.20
12.310
312.67
0.005
0.13
0.344
8.74
3.250
82.55
0.030
0.76
0.375
9.53
3.440
87.38
0.030
0.76
0.375
9.53
6.375
161.93
NOTES:
1. Dimensions are in inches.
2. Tolerance is ±..015 unless other wise specified.
3. Metric equivalents are given for general information.

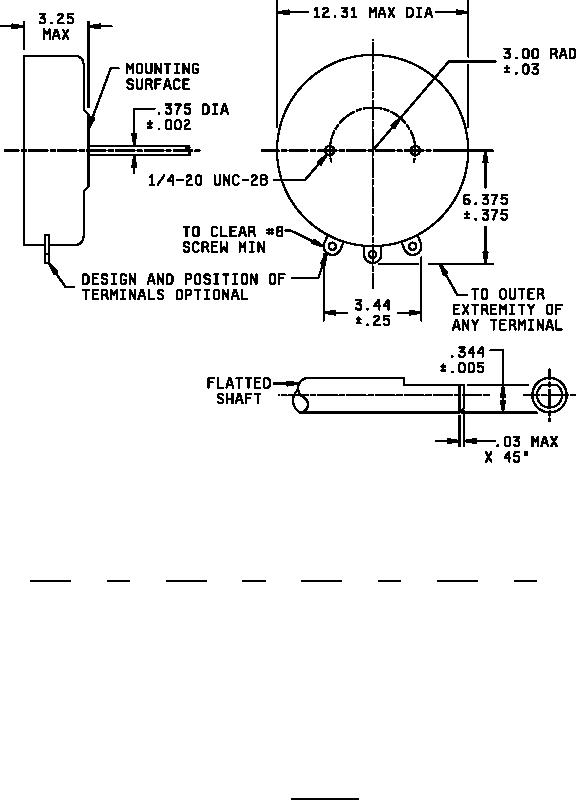

FIGURE 1. Style RP55
3
