MIL-PRF-22-1 Resistor, Variable, Wirewound, Power Type, Unenclosed, Style Rp06This specification covers the requirements for style RP06, variable, wirewound, power type, unenclosed resistors.

Pages 1 - 2 - 3 - 4 - 5 - 6

MIL-PRF-22/1D

Inches

.002

.05

.031

.79

.125

3.18

.625

15.88

.005

.13

.047

1.19

.150

3.81

.751

19.08

.015

.38

.063

1.60

.250

6.35

.781

19.84

.016

.41

.094

2.39

.500

12.70

.921

23.39

NOTES:

1. Dimensions are in inches.

2. Tolerance is �.015 unless other wise specified.

3. Metric equivalents are given for general information.

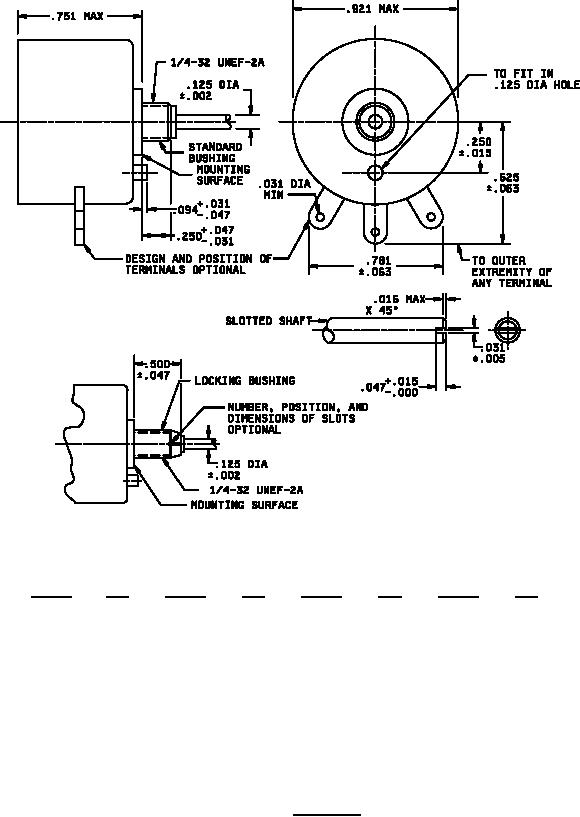

FIGURE 1. Style RP06
