MIL-PRF-19/2D
LOCKING BUSHING TYPE
Inch
mm
.001
0.03
.002
0.05
.013
0.33
.015
0.38
.016
0.41
.031
0.79
.050
1.27
.062
1.57
.080
2.03
.094
2.39
.250
6.35

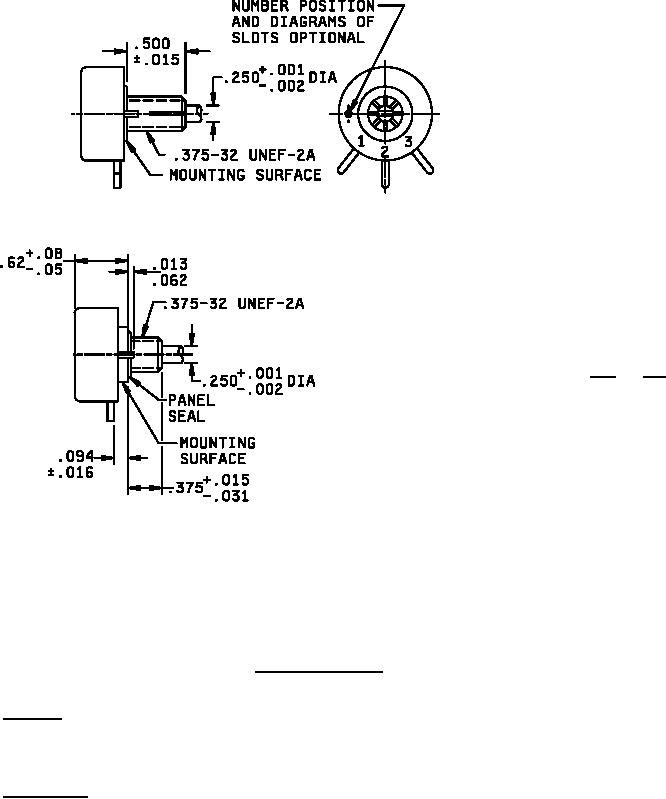

SHAFT AND PANEL SEALED LOCKING BUSHING TYPE
.375
9.53
.500
12.70
.620
15.75
NOTES:
1.
Dimensions are in inches. Metric equivalent are given for general information only.
FIGURE 1. Style RA20 Resistors. (continued)
3.8 Hardware. The mounting nut shall be 0.094 inch thick and shall measure 0.500 inch across the hexagonal
flats, unless otherwise specified (see 6.2). The locking nut shall be 0.151 to 0.234 inch thick and shall measure 0.500
inch across the hexagonal flats. Threads size shall be 0.375-32UNEF-2B. Internal-tooth lockwasher of suitable size
shall be supplied.
3.9 Retainer rings. If retainer rings are used, they shall be not thicker than 0.047 inch.
