3. SALIENT CHARACTERISTICS
3.1 Interface and physical dimensions. Interface and physical dimensions shall be as specified herein (see figure 1).
L
W
D
E
1.6 +0.15 0.8 +0.15 0.9 max 0.35 max
mm
Inches
0.15
0.006
0.35
0.014
0.7
0.03
0.8
0.03
0.9
0.04
1.6
0.06
NOTES:
1. Dimensions are in millimeters. Inch-pound equivalents are given for information only.
2. The US government preferred system of measurement is the metric SI system. However, this item was
originally designed using inch-pound units of measurement. In the event of conflict between the metric and
inch-pound units, the inch-pound units shall take precedence.

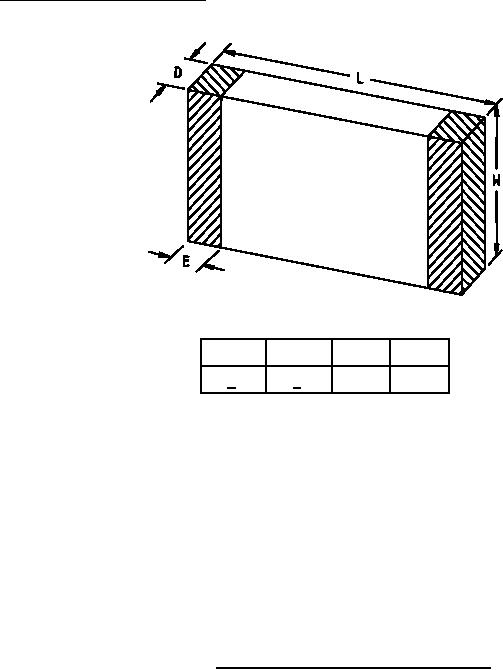

Figure 1. Interface and physical dimensions, style 0603.
