MIL-PRF-83401-5 Resistor Network, Fixed, Film, Style Rz050, 8 Pin SipThis specification covers the associated requirements for style RZ050, 8 pin single-in-line package \(SIP\) resistor networks. This style is available in all characteristics and resistance tolerances of F, G, and J. This specification has two product levels, a high reliability, 100 percent burn-in screened "M" part number level and nonburn-in screened part number "C". Designers are CAUTIONED on using these resistors in high power pulses applications \(see 6.4\).

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7


MIL-PRF-83401/5E

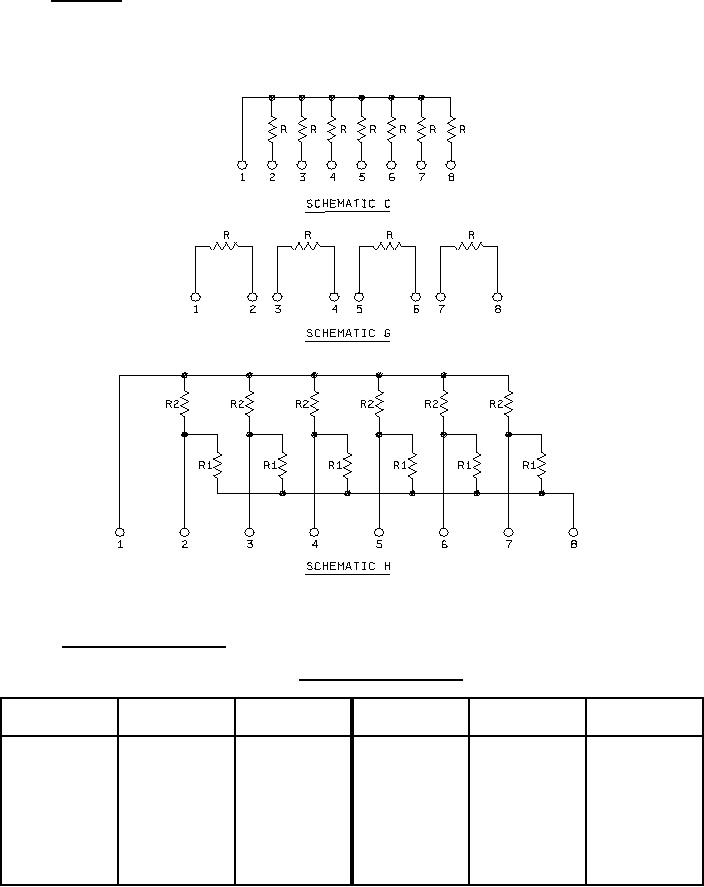

1.2.1 Schematics. The schematics of the resistor network are identified by a single letter in accordance with the
drawings below. The resistor element RREF is the reference element used in determining the ratio accuracy (when
applicable).
1.2.1.1 Standard resistance values. The standard resistance values and the resistance value designators for the H
schematic are as specified in table I.
TABLE I. Standard resistance values.
Resistance
Resistance
R1
R2
R1
R2
designation
designation
(ohms)
(ohms)
(ohms)
(ohms)
A001
82
130
A010
330
470
A002
120
200
A011
330
680
A003
130
210
A012
1.5k
3.3k
A004
160
260
A013
3.0k
6.2k
A005
180
240
A014
180
270
A006
180
390
A015
270
270
A007
220
270
A016
560
560
A008
220
330
A017
560
1.2k
A009
330
390
A018
620
2.7k
2
