MIL-PRF-83401-14 Resistor Network, Fixed, Film, Style Rz140, 16 Pin DipThis specification covers the associated requirements for style RZ140, 16 pin dual-in-line package \(DIP\) resistor networks. This style is available in all characteristics and all resistance tolerances. This specification has two product levels, a high reliability, 100 percent burn-in screened "M" part number level and nonburn-in screened part number "C". Designers are CAUTIONED on using these resistors in high power pulses applications \(see 6.4\).

Pages 1 - 2 - 3 - 4 - 5 - 6

MIL-PRF-83401/14B

Inches mm

Inches

.065

1.65

.008

0.20

.070

1.78

.010

0.25

.085

2.16

.015

0.38

.090

2.29

.016

0.41

.110

2.79

.020

0.51

.135

3.43

.022

0.56

.200

5.08

.030

0.76

.270

6.86

.032

0.81

.300

7.62

.035

0.89

.310

7.87

.040

1.02

.350

8.89

.045

1.14

.830 21.08

.046

1.17

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for general information only.

3. The picturization of the style above is given as representative of the envelope item. Slight deviations

from the outline shown, which are contained within the envelope and do not alter the functional aspects of

the device, are acceptable.

4. Pin 1 locator shall be a dot, notch, stripe, or numeral 1 adjacent to pin no. 1, in the shaded area.

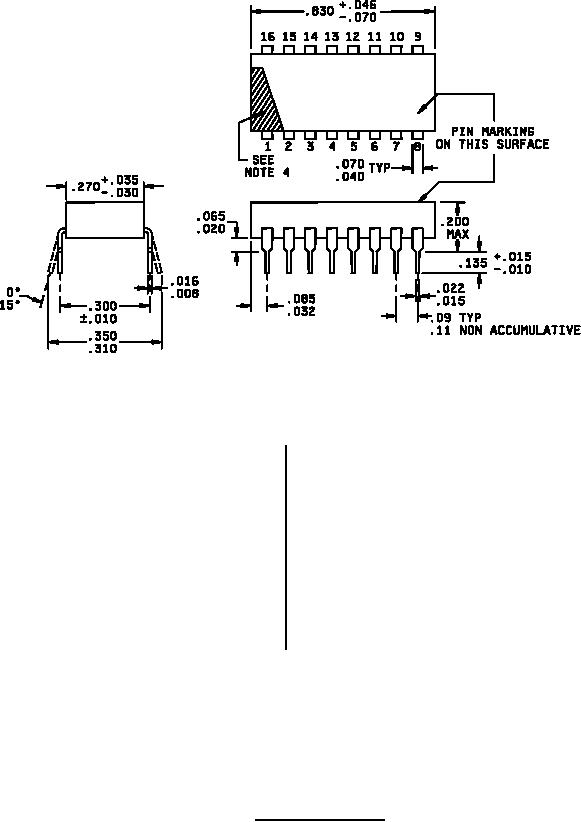

FIGURE 1. Style RZ140 resistors.
