MIL-PRF-83401-1 Resistor Network, Fixed, Film, Style Rz010, 14 Pin DipThis specification covers the associated requirements for style RZ010, 14 pin dual-in-line package \(DIP\) resistor networks. This style is available in all characteristics and resistance tolerances. This specification has two product levels, a high reliability, 100 percent burn-in screened "M" part number and a nonburn-in screened part number "C". Designers are CAUTIONED on using these resistors in high power pulses applications \(see 6.4\).

Pages 1 - 2 - 3 - 4 - 5 - 6

MIL-PRF-83401/1H

Inches

Inches mm

.008

0.20

.070

1.78

.010

0.25

.085

2.16

.015

0.38

.090

2.29

.016

0.41

.110

2.79

.020

0.51

.135

3.43

.022

0.56

.200

5.08

.030

0.76

.270

6.86

.035

0.89

.300

7.62

.040

1.02

.310

7.87

.045

1.14

.350

8.89

.065

1.65

.740 18.80

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for general information only.

3. The picturization of the styles above is given as representative of the envelope of the item. Slight deviations

from the outline shown, which are contained within the envelope and do not alter the functional aspects of

the device, are acceptable.

4. Pin 1 locator shall be a dot, notch, stripe, or numeral 1 adjacent to pin no. 1, in the shaded area.

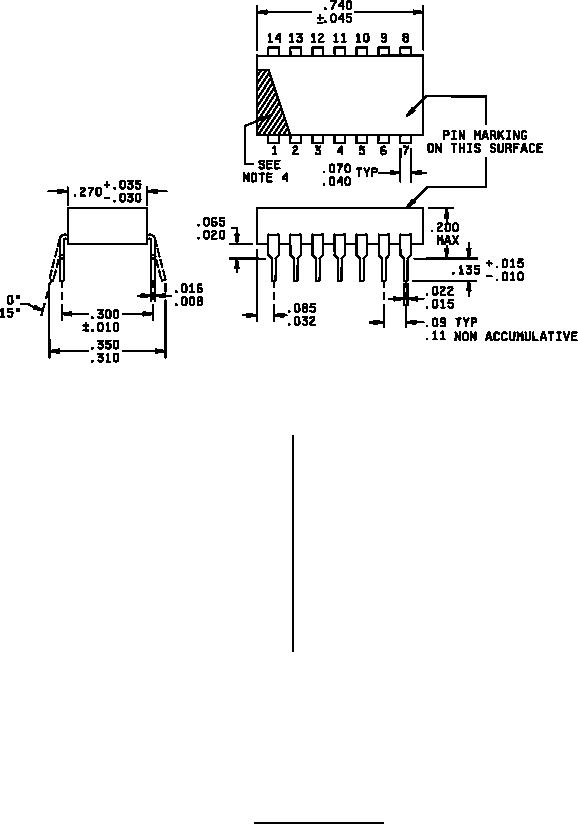

FIGURE 1. Style RZ010 resistors.
