MIL-PRF-49465/7C
Dimensions
Style
A
B
C
D
.925 ±.031
.040 ±.005
.330 ±.031
1.50 min
RLV31
(23.50 ±.787)
(1.02 ±.130)
(8.38 ±.787)
(38.10 min)
NOTES:
1. Dimensions are in inches. Metric equivalents are given for information only, and are in parentheses.
2. For resistance measurements the point of contact to the leads shall be .375 ±.062 (9.52 mm ±1.57 mm)
from the body.
3. The picturization of the style above is given as representative of the envelope of the item. Slight deviations
from the outline shown, which are contained within the envelope and do not alter the functional aspects of
the device, are acceptable.

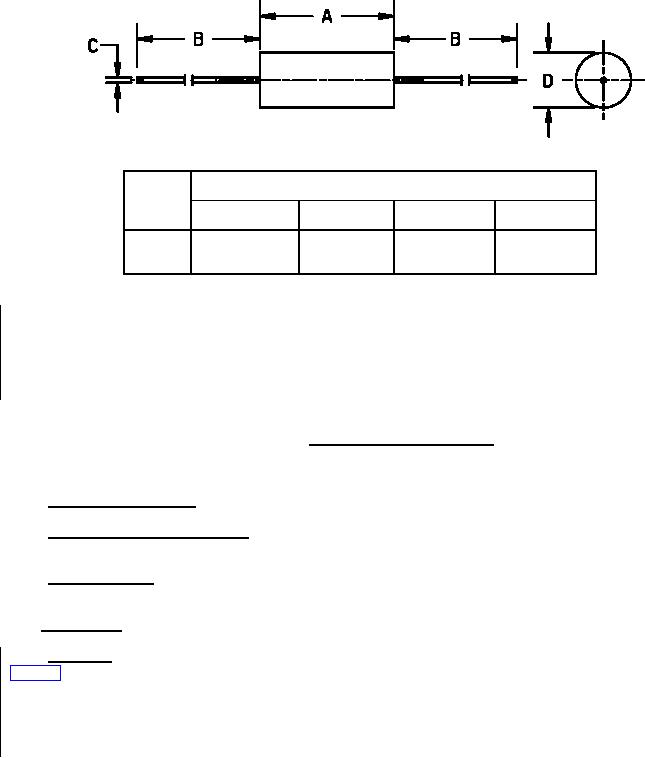

FIGURE 1. Resistors, fixed, metal element.
4. VERIFICATION
4.1 Sampling and inspection. Sampling and inspection shall be in accordance with MIL-PRF-49465.
4.2 Visual and mechanical inspection. Visual and mechanical inspection shall be in accordance with
4.3 Terminal strength. Terminal strength shall be in accordance with MIL-PRF-49465 and the applied force shall
be five pounds.
5. PACKAGING.
5.1 Packaging. For acquisition purposes, the packaging requirements shall be as specified in the contract or order
(see 6.2). When packaging of materiel is to be performed by DoD or in-house contractor personnel, these personnel
need to contact the responsible packaging activity to ascertain packaging requirements. Packaging requirements are
maintained by the Inventory Control Point's packaging activity within the Military Service or Defense Agency, or within
the military services system commands. Packaging data retrieval is available from the managing Military
Department's or Defense Agency's automated packaging files, CD-ROM products, or by contacting the responsible
packaging activity
3
