MIL-PRF-49465/1C
4
ENVELOPE ESSENTIALLY
CYLINDERICAL NO SQUARE
OR RECTANGULAR CROSS
SECTION ALLOWED
Dimensions
Style
A
B
C
D
E
.937 ±.062
.040 ±.005
.375 ±.031
.062 ±.020
1.43 min
RLV10
(23.80 ±.157)
(1.02 ±.130)
(9.53 ±.787)
(1.57 ±.508)
(37.59 min)
NOTES:
1. Dimensions are in inches. Metric equivalents are given for general information only, and are in parentheses.
2. For resistance measurements the point of contact to the leads shall be .375 ±.062 (9.52 mm ±1.57 mm) from
the body.
3. The picturization of the style above is given as representative of the envelope of the item. Slight deviations
from the outline shown, which are contained within the envelope and do not alter the functional aspects of the
device, are acceptable.
4. At the option of the manufacturer a dot may be placed adjacent to the voltage lead. In the absence of a dot
either lead may be used as the voltage lead.

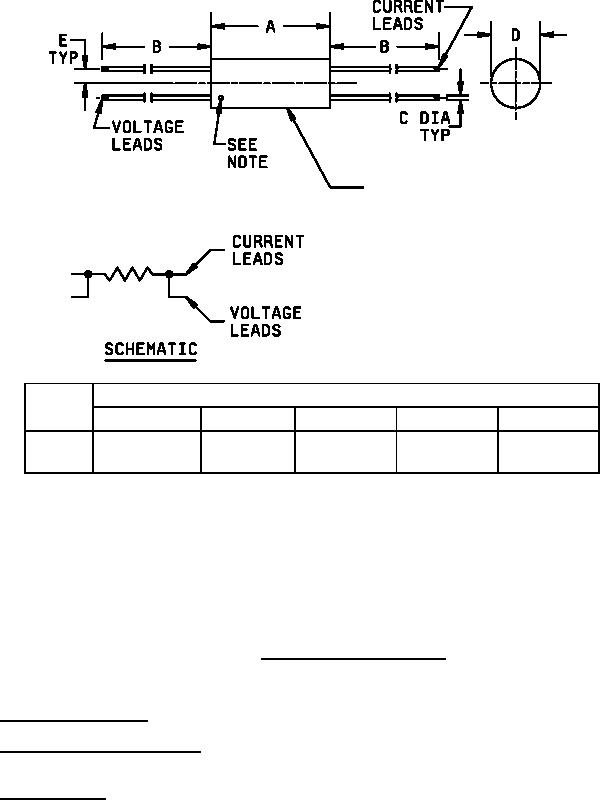

FIGURE 1. Resistors, fixed, metal element.
4. VERIFICATION
4.1 Sampling and inspection. Sampling and inspection shall be in accordance with MIL-PRF-49465.
4.2 Visual and mechanical inspection. Visual and mechanical inspection shall be in accordance with
4.3 Terminal strength. Terminal strength shall be in accordance with MIL-PRF-49465 and the applied force shall
be five pounds.
3
