MIL-PRF-39035/2H
mm
Inches
mm
Inches
mm
Inches
mm
Inches
mm
Inches
mm
Inches
mm
Inches
.006
0.15
.020
0.51
.030
0.76
.080
2.03
.135
3.43
.187
4.75
.419
10.64
.010
0.25
.024
0.61
.072
1.83
.100
2.54
.150
3.81
.300
7.62
.420
10.67
.015
0.38
.025
0.64
.075
1.91
.125
3.18
.170
4.32
.375
9.53
NOTES:
1. Dimensions are in inches.
2. Unless otherwise specified, tolerance is ±.005 (±.13 mm).
3. Metric equivalents are given for general information only.
4. The picturization of the styles above are given as representative of the envelope of the item. Slight
deviations from the outline shown, which are contained within the envelope, and do not alter the functional
aspects of the device are acceptable.
5. The entire slot of the actuating screw must be above the surface of the unit.
6. For types P, W, and X normal mounting means is by use of pins only.
7. The three leads shall be insulated wire, AWG size 28 to 30, having a minimum length of 6.00 (152.4 mm);
they shall be insulated with polytetrafluoroethylene, stripped .250 ±.062 (6.35 mm ±1.57 mm) from the end
and color coded
8. Design of standoff is optional.
9. For terminal types P, W, and X, shorter lead lengths (.172 minimum) are available, and can be ordered
though acquisition requirements (see 6.2c).

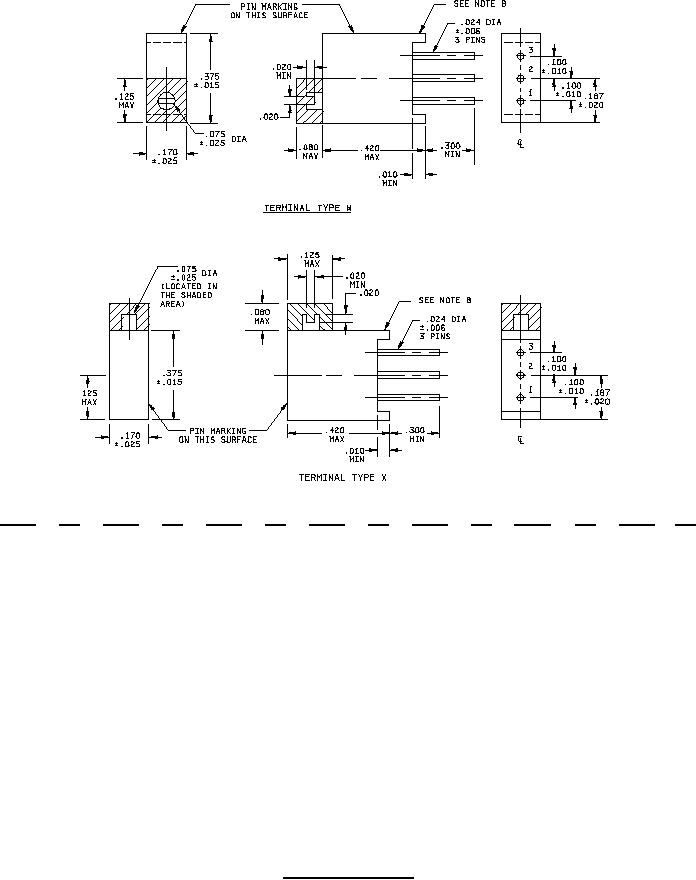

FIGURE 1. Style RJR24 resistors - Continued.
4
