MIL-PRF-39007-8 Resistor, Fixed, Wirewound \(Power Type\), Nonestablished Reliability, Established Reliability, And Space Level, Style Rwr80This specification covers the associated requirements for style RWR80, nonestablished reliability, established reliability, and space level, power type, wirewound, fixed, resistor. These resistors are available with terminal types "S" \(solderable, inductively wound\), "W" \(weldable, inductively wound\), "N" \(solderable, noninductively wound\), and "Z" \(weldable, noninductively wound\).

Pages 1 - 2 - 3 - 4 - 5

MIL-PRF-39007/8L

Table I. Resistance temperature characteristic.

Resistance range

Resistance temperature characteristic

(ohms)

(Reference to 25�C)

0.1≤R≤0.499

�650 ppm

0.499<R≤1.0

�400 ppm

1.0<R≤10

�50 ppm

10<R

�20 ppm

Inches

.0015

0.038

.016

0.41

.0200

0.508

.031

0.79

.062

1.57

.094

2.39

.406

10.31

1.500

38.10

Standard

Dimensions

style

A �.031

B (min)

C �.0015

D �.031

RWR80

.406

1.500

.0300

.094

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for general information only.

3. Dimension A is clean lead to clean lead.

4. Lead concentric tolerance is to be measured at the point of lead egress from the resistor body to be

within .016 TIR.

5. Lead length for tape and reel packaging shall be 1 inch minimum.

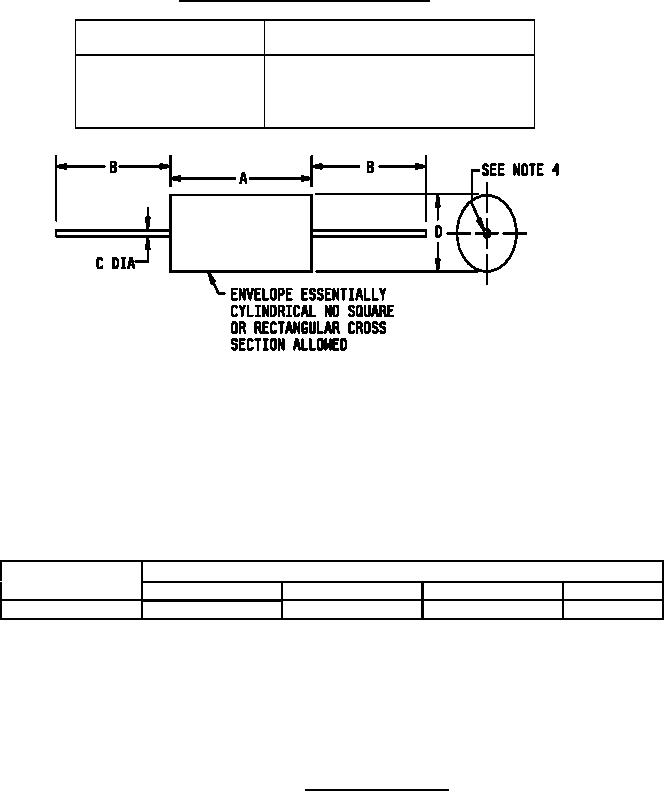

FIGURE 1. Style RWR80 resistor.
