MIL-PRF-39007-12 Resistor, Fixed Wire-Wound \(Power Type\), Nonestablished Reliability, Established Reliability, And Space Level Style Rwr82This specification covers the associated requirements for style RWR82, nonestablished reliability, established reliability, and space level, power type, wire-wound, fixed, resistor. These resistors are available with terminal types "S" \(solderable, inductively wound\), "W" \(weldable, inductively wound\), "N" \(solderable, noninductively wound\), and "Z" \(weldable, noninductively wound\).

Pages 1 - 2 - 3 - 4 - 5

MIL-PRF-39007/12F

Table I. Resistance temperature characteristic.

Resistance range

Resistance temperature characteristic

(ohms)

(Reference to 25�C)

0.1≤R≤0.499

�650 ppm

0.499<R≤1.0

�400 ppm

1.0<R≤10

�50 ppm

10<R

�20 ppm

Inches

.002

0.05

.016

0.41

.020

0.51

.031

0.79

.062

1.57

.078

1.98

.312

7.92

1.500

38.10

Standard

Dimensions

style

A +.016, -.031

B (min)

C �.002

D �.016

RWR82

.312

1.500

.020

.085

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for general information only.

3. Dimension A is clean lead to clean lead.

4. Lead concentric tolerance is to be measured at the point of lead egress from the resistor body to be

within .016 TIR.

5. Lead length for tape and reel packaging shall be 1 inch minimum.

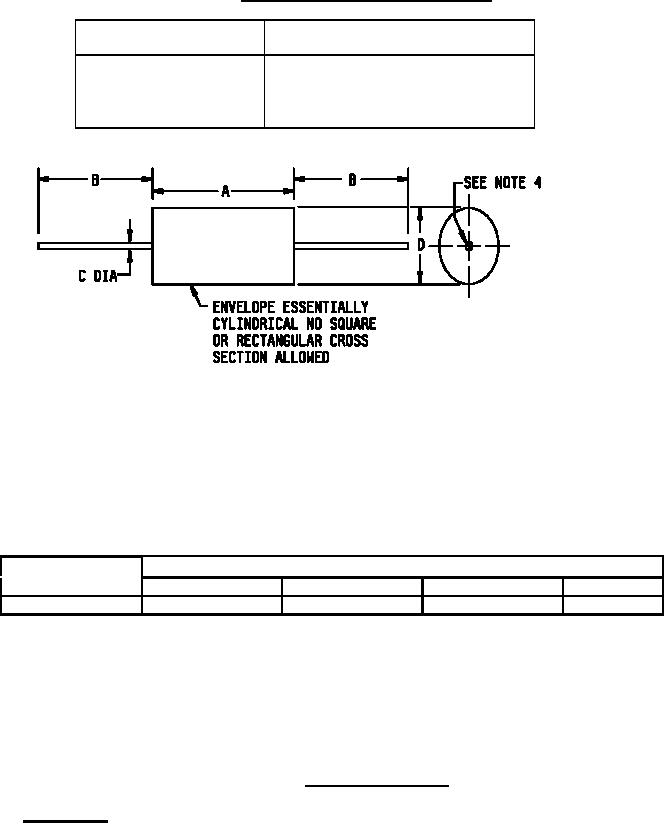

FIGURE 1. Style RWR82 resistor.

3.7 Power rating. The power rating shall be 1.5 watts at +25�C.
