MIL-PRF-39002/3C
4. VERIFICATION
4.1 Sampling and inspection. Sampling and inspection shall be in accordance with MIL-PRF-39002.
4.2 Group A inspection. Group A inspection shall include the shaft to bushing seal test.
4.2.1 Shaft to bushing seal. Resistors shall be tested in accordance with following:
a.
Mounting shall be in accordance with figure 2. the mounting nut shall be torque to 15.5 inch-pounds to 16.5
inch-pounds.
O
O
Condition the sample at -62 C and +71 C for 15 minutes at each temperature extreme with five minutes
b.
maximum between temperature extremes and return to room temperatures.
c.
Immerse the test chamber in water as shown in figure 2. Pressurize the sealed test chamber with dry air or
nitrogen to 5 psig ±0.5 psig for 60 seconds ±10 seconds.
d.
No failures allowed.

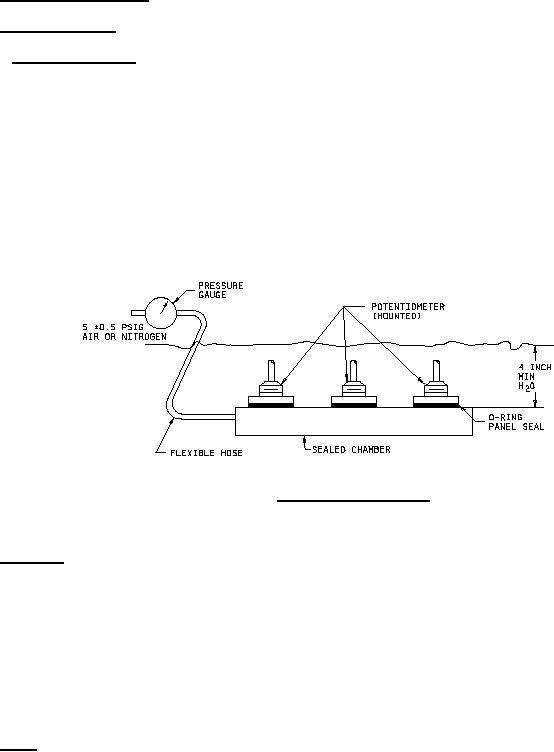

FIGURE 2. Shaft to bushing seal test.
5. PACKAGING
5.1 Packaging. For acquisition purposes, the packaging requirements shall be as specified in the contract or order
(see 6.2). When packaging of materiel is to be performed by DoD or in-house contractor personnel, these personnel
need to contact the responsible packaging activity to ascertain packaging requirements. Packaging requirements are
maintained by the Inventory Control Point's packaging activity within the Military Department or Defense Agency, or
within the military service's system commands. Packaging data retrieval is available from the managing Military
Department's or Defense Agency's automated packaging files, CD-ROM products, or by contacting the responsible
packaging activity.
6. NOTES
(This section contains information of a general or explanatory nature that may be helpful, but is not mandatory.)
6.1 Notes. The notes specified in MIL-PRF-39002 are applicable to this specification.
