MIL-PRF-27208/9G
Inches
mm
Inches
Mm
Inches
mm
Inches
mm
Inches
mm
0.009
0.23
0.024
0.61
0.075
1.91
0.150
3.81
0.195
4.95
0.010
0.25
0.025
0.64
0.080
2.03
0.172
4.37
0.375
9.53
0.015
0.38
0.050
1.27
0.100
2.54
0.187
4.75
0.419
10.64
0.020
0.51
0.072
1.83
0.125
3.18
0.190
4.83
0.420
10.67
NOTES:
1.
Dimensions are in inches.
2.
Metric equivalents are given for general information.
Unless otherwise specified, tolerance is ±0.005 (0.13mm).
3.
4.
The entire slot of the actuating screw must be above the surface of the unit.
5.
For types P,W, and X, normal mounting means is by use of pins only.
6.
The picturization of the styles above are given as a representative of the envelope of the item. Slight
deviations from the outline shown, which are contained within the envelope, and do not alter the functional
aspects of the device are acceptable.
7.
The three leads shall be of stranded wire, AWG size 28 to 30, having a minimum length of 6 inches (152.4
mm); they shall be insulated with polytetrafluoroethylene, stripped 0.250 inch ±0.062 inch (6.35mm ±1.57mm)
from the end, and color coded.

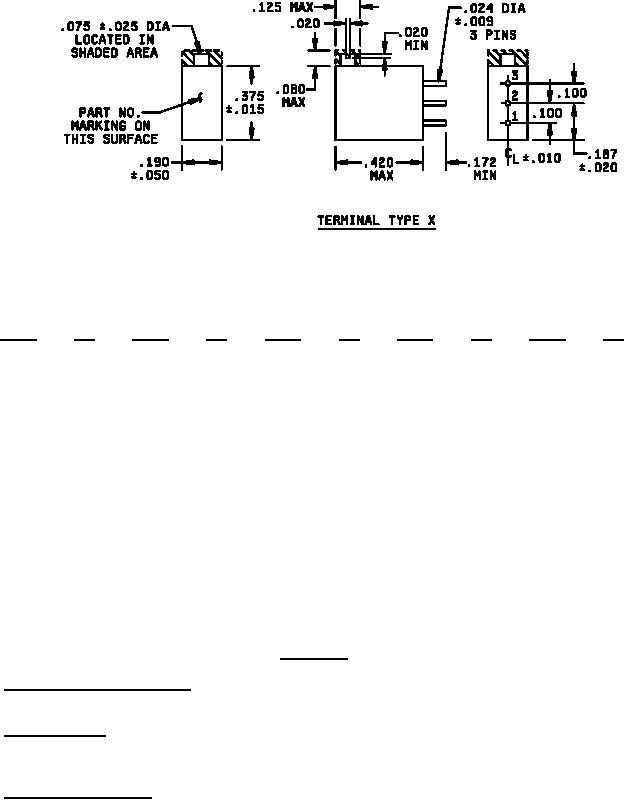

FIGURE 1. Style RT24 - Continued.
3.5 Actual effective electrical travel. The actual effective electrical travel shall be 15 turns minimum and 30 turns
maximum.
3.6 Operating torque. The torque required to effect rotation shall be 5 inch-ounce maximum.
4. VERIFICATION
4.1 Sampling and inspection. Sampling and inspection shall be in accordance with MIL-PRF-27208.
4
