MIL-PRF-22097/3J
Inches
mm
Inches
mm
Inches
mm
Inches
mm
.003
0.08
.028
0.71
.172
4.37
.500
12.70
.010
0.25
.045
1.14
.205
5.21
.540
13.72
.020
0.51
.078
1.98
.250
6.35
.025
0.64
.100
2.54
.260
6.60
NOTES:
1. Dimensions are in inches. Metric equivalents (to the nearest .01 mm) are given for general information only
and are based upon 1 inch = 25.4 mm.
2. Unless otherwise specified, tolerance is ±.005 (.13 mm).
3. The entire slot of the actuating screw must be above the surface of the unit.
4. For types P, W, and X, normal mounting means is by use of pins only.
5. The picturization of the styles above are given as representative of the envelope of the item. Slight deviations
from the outline shown, which are contained within the envelope, and do not alter the functional aspects of
the device are acceptable.
6. The three leads shall be of a stranded wire, AWG size 28 to 30, having a minimum length of 6 inches
(152.4 mm); they shall be insulated with polytetrafluoroethylene, stripped .250 ±.062 inches (6.35 ±1.57 mm)
from the end and color coded.

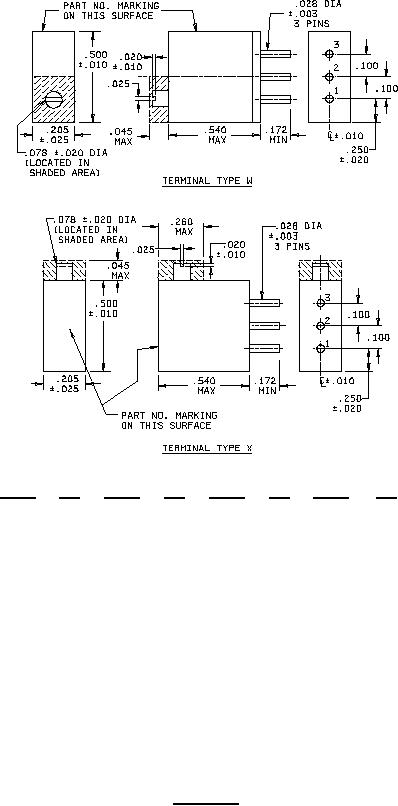

FIGURE 1. Style RJ22 - Continued.
