MIL-PRF-22097/1J
Inches
mm
Inches
mm
Inches
mm
Inches
mm
Inches
mm
.005
0.13
.020
0.51
.040
0.89
.093
2.36
.275
6.99
.010
0.25
.025
0.64
.047
1.02
.094
2.39
.300
7.62
.011
0.28
.031
0.79
.058
1.19
.125
3.18
.312
7.92
.015
0.38
.032
0.81
.062
1.47
.172
4.37
.375
9.53
.016
0.41
.035
0.89
.078
1.98
.200
5.08
1.000
25.40
NOTES:
1. Dimensions are in inches.
2. Unless otherwise specified, tolerance is ±.005 (.13 mm).
3. Metric equivalents (to the nearest .01 mm) are given for general information only and are based upon
1 inch = 25.4 mm.
4. The picturization of the styles above are given as representative of the envelope of the item. Slight deviations
from the outline shown, which are contained within the envelope, and do not alter the functional aspects of
the device are acceptable.
5. Standoffs and/or eyelets are optional, but shall be contained in the envelope dimensions specified in figure 1.

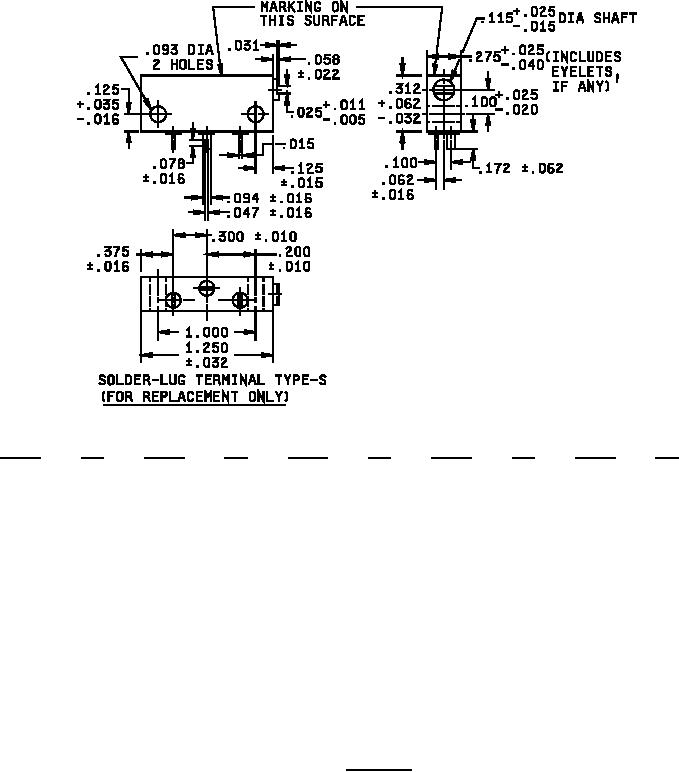

FIGURE 1. Style RJ11.
3
