MIL-PRF-22-2 Resistor, Variable, Wirewound, Power Type, Enclosed, Style Rp07This specification covers the requirements for style RP07, variable, wirewound, power type, enclosed resistors.

Pages 1 - 2 - 3 - 4 - 5 - 6

MIL-PRF-22/2E

Inches

.002

0.05

.016

0.41

.094

2.39

.188

4.78

1.094

27.79

.005

0.13

.031

0.79

.125

3.18

.250

6.35

1.126

28.60

.015

0.38

.047

1.19

.156

3.96

.500

12.70

NOTES:

1. Dimensions are in inches.

2. Tolerance is �.015 unless other wise specified.

3. Metric equivalents are given for general information.

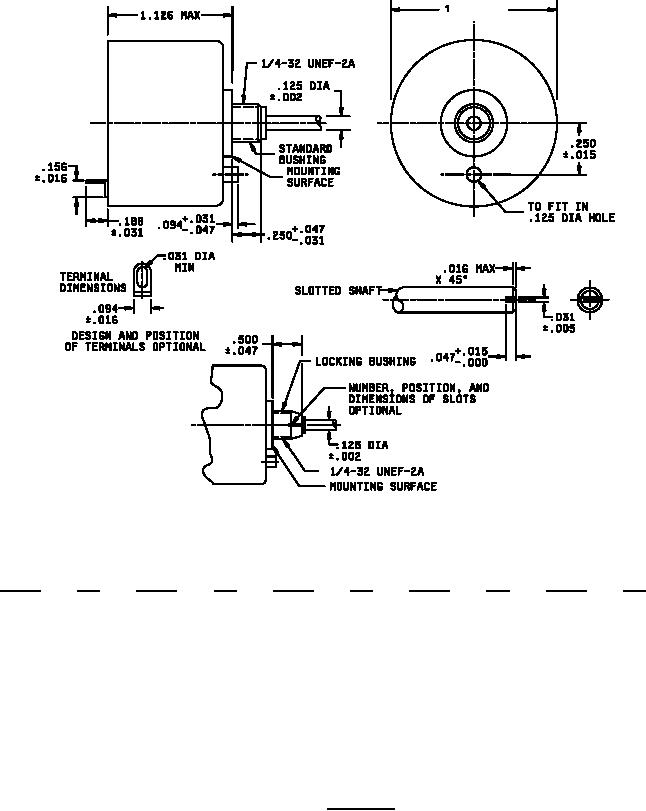

FIGURE 1. Style RP07
